RCEXL 7 Cylinder Ignition System 1/4-32 90 Degree w/ sensor

Replacement or new RCEXL 7 Cylinder ignition system with 1/4" Plug Caps - 90 Degree Cap

Voltage Rating: 6V/9.6V

RCXEL 7 Cylinder system for 1/4-32" 90 Degree cap Spark Plugs ( Small plugs that will fit standard glow plug socket - Available Separately)

Includes Auto Advancing Ignition unit (CDI), hall effect sensor and mounting brackets, spiral wrap.

Suitable for 7 Cylinder radial engines

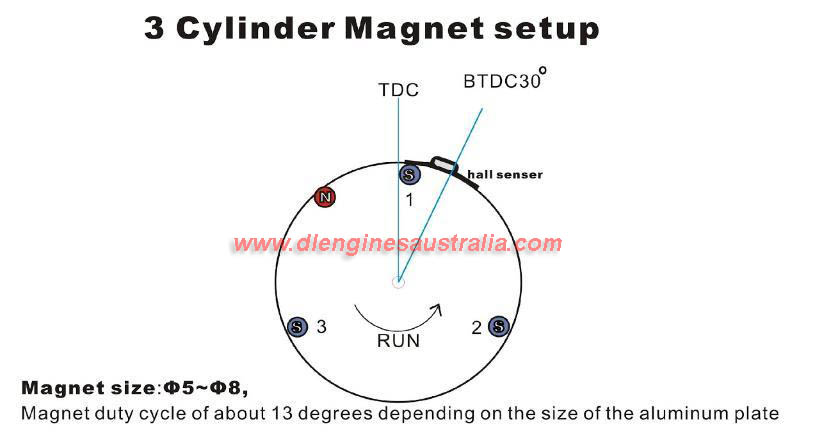

Requires mulitple magnets in hub to operate ignition correctly - See image above for details.

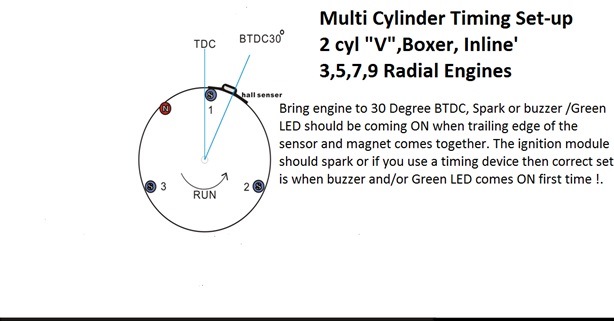

If fitting to a new engine then the timing is achieved by fitting a magnet for each cylinder and one inverted to prime the system. The set up is very important and will involve some engineering skill.

Replacement spark plug caps and spark plugs also available to suit
