RCEXL 4 Cylinder Ignition System - 1/4-32 120 Degree w/ sensor

RCEXL 4 Cylinder ignition system with 1/4" Plug Caps - 120 Degree Cap

Voltage Rating: 6V/9.6V

Photo currently show 5 cylinder but will be updated shortly

RCXEL 4 Cylinder system for 1/4-32" 90 Degree cap Spark Plugs ( Small plugs that will fit standard glow plug socket - Available Separately)

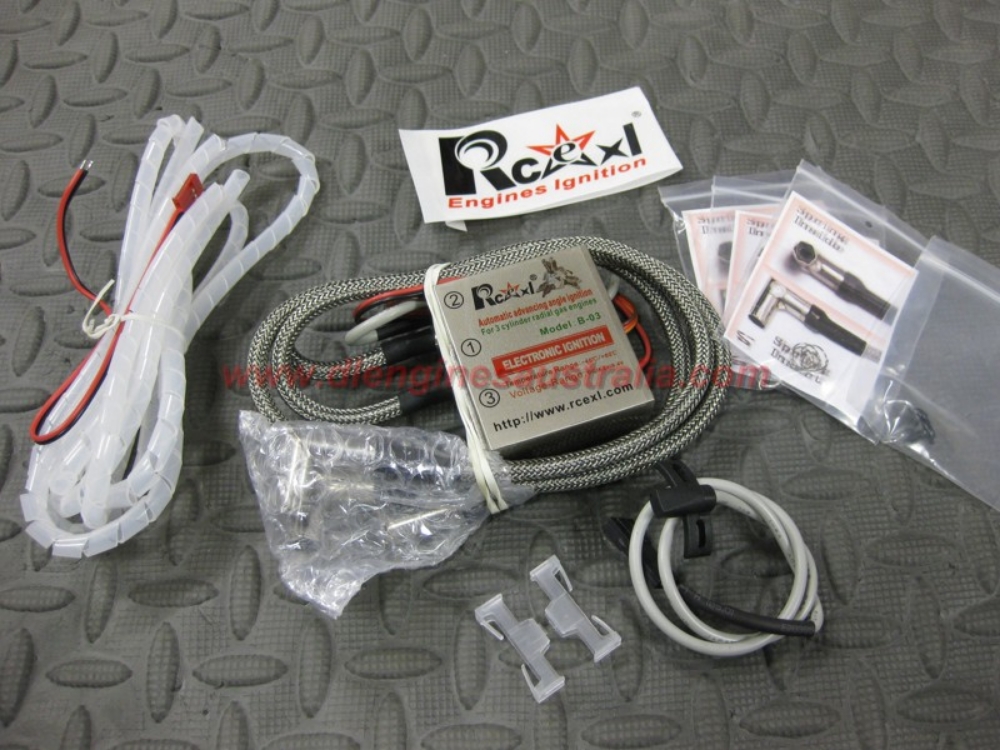

Includes Auto Advancing Ignition unit (CDI), hall effect sensor and mounting brackets, spiral wrap.

Suitable for 4 Cylinder cylinder engines

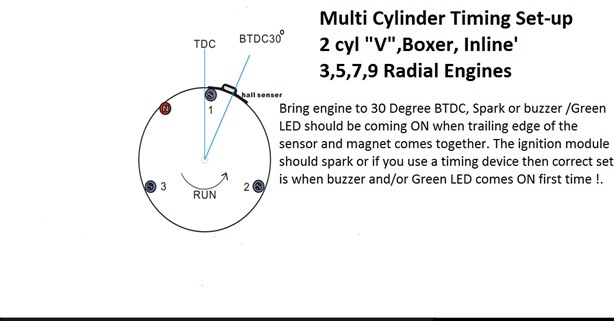

Requires mulitple magnets in hub to operate ignition correctly - See image above for details.

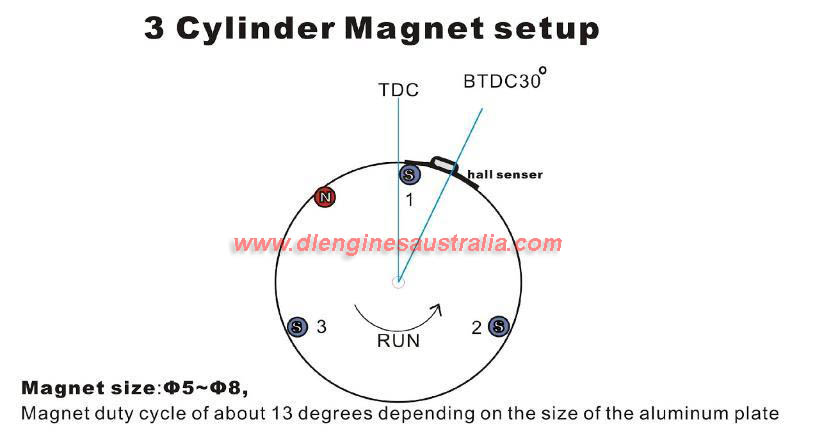

The timing is achieved by fitting a magnet for each cylinder and one inverted to prime the system. The set up is very important and will involve some engineering skill.

Replacement spark plug caps and spark plugs also available to suit
