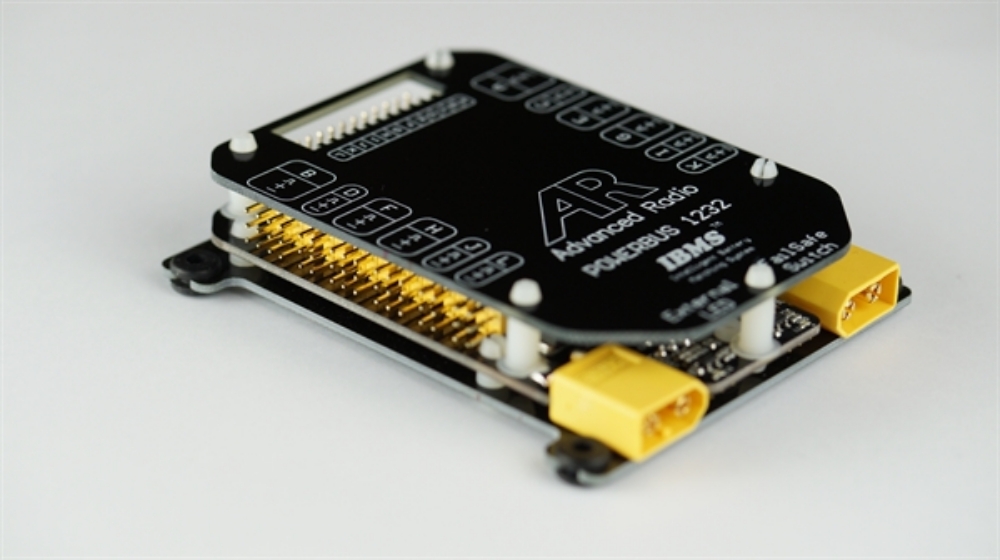

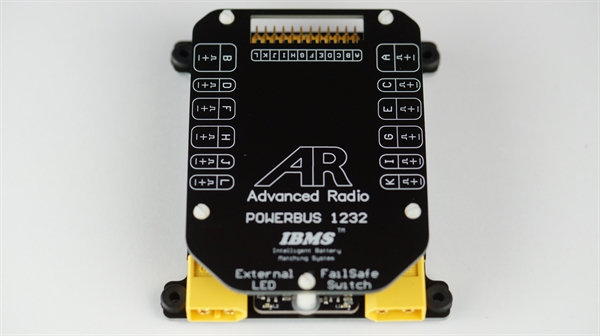

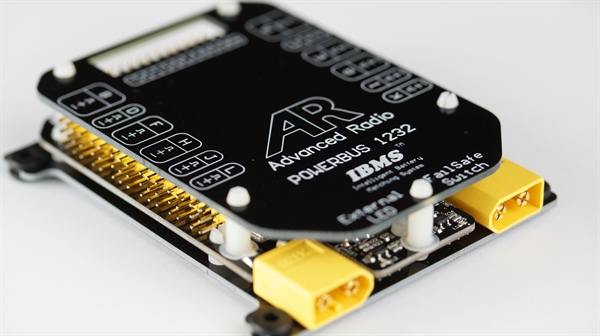

Welcome to the Advanced Radio AR1232 Power Bus distribution system.
We were approached by many RC pilots and asked if we would could produce a high quality low cost Power Distribution system. We took a great deal of input from our advisors and came up what we see as a first in power distribution systems at an affordable price. Simple usability and style in design played important roles in the final product and we believe the specification is one of the best in the industry for it's class. Many thanks to all our contributors.
Here are the details.
12 Inputs and 32 Outputs - The AR1232 is a high quality power distribution system featuring 12 input channels and 32 output channels. Simply connect your receiver (up to 12 Channels) to the AR1232 and you have immediate access to 32 fully buffered output channels capable of driving long cable lengths for up to 32 servos.
Intelligent Battery Management System (IBMS) - AR1232 also features our unique IBMS technology.With IBMS, dual receiver batteries are monitored 100% of the time and are balanced as they are used so you get the highest output power from both batteries all the time. IBMS monitors each battery with zero voltage drop so you get no parasite energy wasted in heat giving you the optimum power from your battery packs all the time. IBMS also features Battery Backup and fail safe. In the case of a battery failing it will be switched out of circuit and then the other battery takes over to bring your prized model home.
3 High Bright Blue Indicator LEDs - The AR1232 features 3 high bright blue LEDs to give clear feedback of regulated receiver power and battery performance. The LED mounted at the inputs shows 5volt receiver activity while the LEDS at the Battery connection end show the status of each battery usage. If a battery LED is glowing then the battery is supplying power.
Regulated Receiver Voltage - AR1232 comes with a separate 2 amp 5 volt regulated input bus for the receiver power while the main Output Power Bus sees the full voltage of your selected batteries.
All Battery Chemistries - AR1232 was designed to accommodate all types of servos from low voltage to todays modern high voltage servos. The type of servos used depends on the selected battery chemistry. AR1232 is suitable with all battery chemistries like (Nicd, NiMh, LiFe, Lion, LiPo). See battery details below.
Choice of Fail Safe Switching - AR1232 comes ready to use with the optional Advanced Radio Pin Flag switch/remote LED pack. AR1232 can also be used with any other mechanical or electronic switching system like our Intelliswitch, or Wallaby switch.

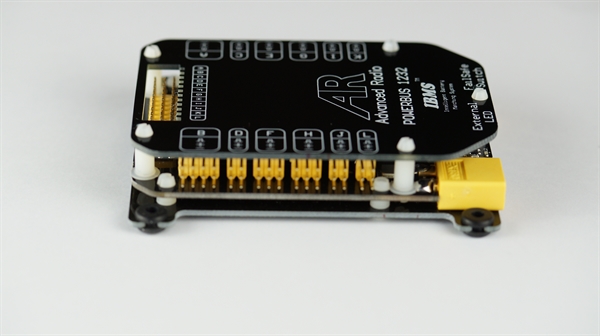

Stylish Design - The stylish design of the AR1232 allows you to mount your receiver either on the top plate of the AR123 or remotely elsewhere in your model.
Choice of Power Connectors - The AR1232 can be tailored to suit your requirements with a choice of three industry standard power connectors. We ship as standard with Ultra connectors. Please select your preferred connector type below prior to placing your order.
Supplied with all the female to female conncting cables to connect to your receiver.
100% Compatible with the Advanced Radio Intellimatch automatic servo matching system.
Read on for the full list of features or
Click Here to Download AR1232 Instructions
AR1232 Power Bus Features:
- 12 Input Channels & 32 output channels
- 2 x independent Intelligent Battery Matching System (IBMS).
- Dual LED indication for each battery.
- Recommended battery chemistry
Life (2 cells), LiPo (2 cells), Lion (2 cells), NiCd(5cells),
Nimh(5 cells).
- Maximum input voltage 10 volts.
- Minimum input voltage 5 volts.
- Max continuous current across 32 outputs:
2 x 10 Amp (20 Amp),
2 x 15 Amp (30 Amp for 15 sec),
- Max instantaneous current 2 x 20 Amp.
- 5 volt 2amp regulator for Receiver supply.
- Weight 72 grams.
- Length 90 mm x width 64 mm x Height 17.3 mm
- Designed to work with Intellegent Servo Matching System ISMS TM
Intelligent Servo Matching Accessories:

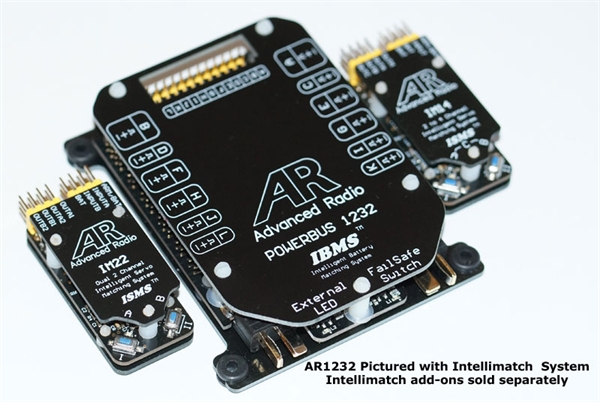

If you are building a scale model that uses multiple servos to control surfaces then consider adding our Intellimatch TM Automatic servo matching system to your Power Bus AR1232.
Video of Intellimatch with the AR Power Bus system.
Here are some model examples:
Model Example 1 - 100cc Scale Aero Model:
2 Aileron Servos per aileron
1 Elevator Servo per elevator
2 Rudder servos
Suggested Power Bus Intellimatch Accessories
2 x IM22 = 1 x IM22 for Ailerons and 1 x IM22 for Elevators
Model Example 2 - 150cc Scale Aero Model:
3 Aileron Servos per aileron
2 Elevator Servo per elevator
3 Rudder servos
Suggested Power Bus Intellimatch Accessories:
1 x IM22 = 1 x IM22 for Elevators
2 x IM14 = for Ailerons
1 x IM14 = for Rudder
Model Example 3 - Large Jet:
2 Aileron Servos per aileron
2 Flap Servos
1 Elevator Servo per elevator
2 Rudder servos
Suggested Power Bus Intellimatch Accessories:
1 x IM22 = for right side Ailerons and Flaps
1 x IM22 = for left side Ailerons and Flaps
1 x IM22 = for Rudder
Model Example 4 - Giant Scale Glider:
2 Aileron Servos per aileron
2 Flap Servos
1 Elevator Servo per elevator
2 Rudder servos
Suggested Power Bus Intellimatch Accessories:
1 x IM22 = for right side Ailerons and Flaps
1 x IM22 = for left side Ailerons and Flaps
1 x IM22 = for Rudder
Click Here for more details on our Dual Channel world first Intellimatch Automatic Servo Matching System.
Click Here for more details on our 4 Channel world first Intellimatch Automatic Servo Matching System.
