DLE35HD

Manufacturer: DL Engines

SKU: BRC1684

Be the first to review this product

Call for pricing

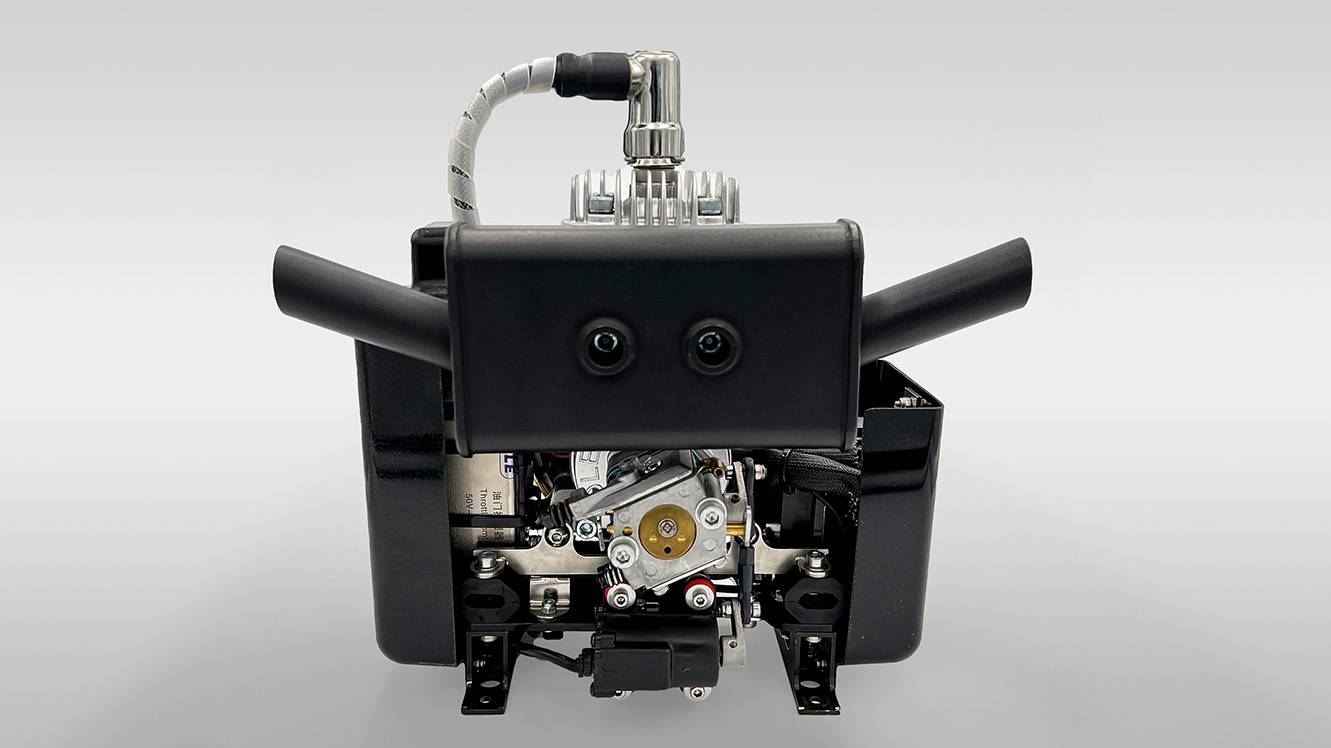

The DLE35HD hybrid engine, which was launched in April 2022, is a single cylinder two-stroke water-cooled piston engine. The efficient water-cooled cooling mode provides a more stable working mode for the engine.The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.

Engine Options

IET01 - Ignition Battery Elimination switch with RPM and Temperature telemetry [+$86.90 (USD)]
IBEC01 - Ignition Battery Elimination Switch [+$42.90 (USD)]
REXEL Optical Ignition Kill Switch [+$19.74 (USD)]
1700mAh 6.6v LiFe ignition pack [+$38.44 (USD)]
3200 mAh 7.4v Lion Ignition battery SKU: BRC696 [+$42.90 (USD)]
2 meters of Fuel tube SKU: BRC107 [+$9.84 (USD)]

Qty:

+ -

Description

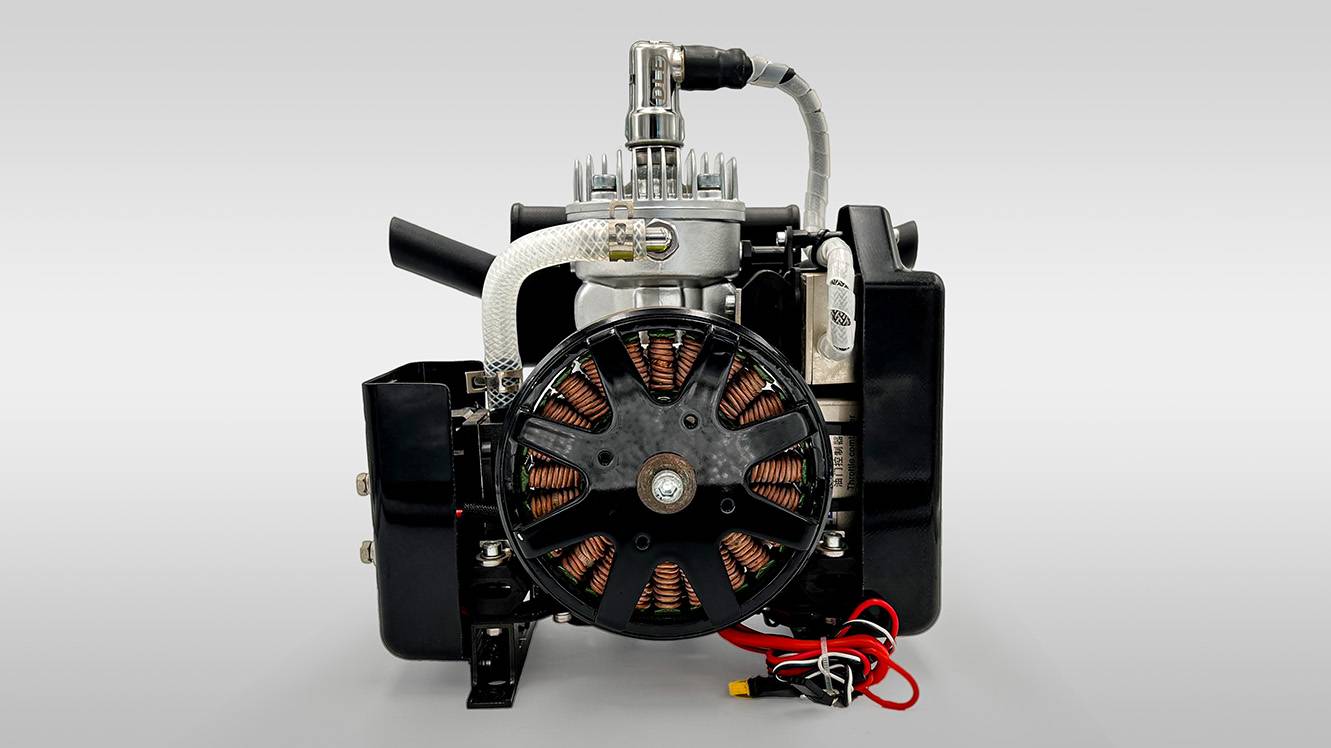

Generator parameters:
Three phase permanent magnet generator
Voltage: ac50v to dc50v
Frequency: non constant frequency type, which changes with the engine speed

Engine parameters:
Single cylinder water cooling
Displacement : 35cm3
Cylinder bore × trip：38.5mm×30mm
Power: 3.5hp/8500 RPM power: 2.5kW (0 altitude)
Idle speed: 5000-6000 rpm
Engine weight: 3.3kg
Weight of cooling system; 2kg (including 800ml coolant)
