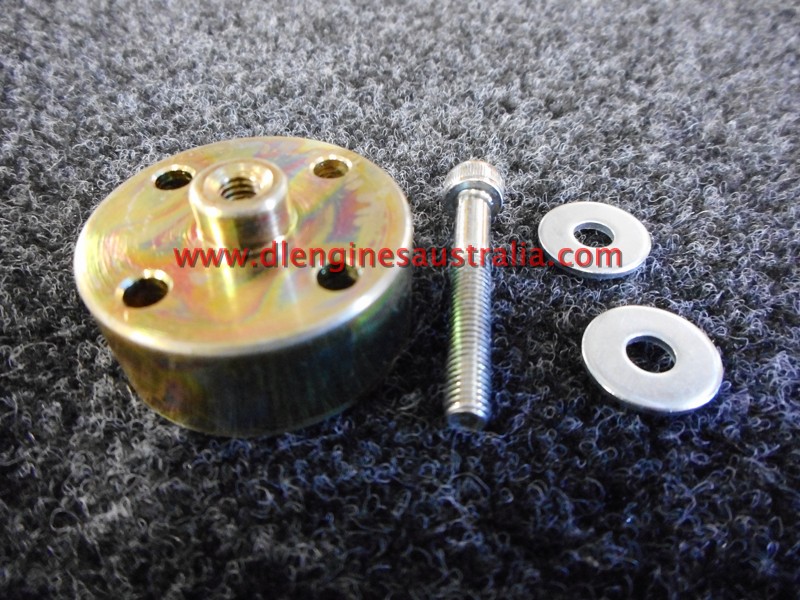

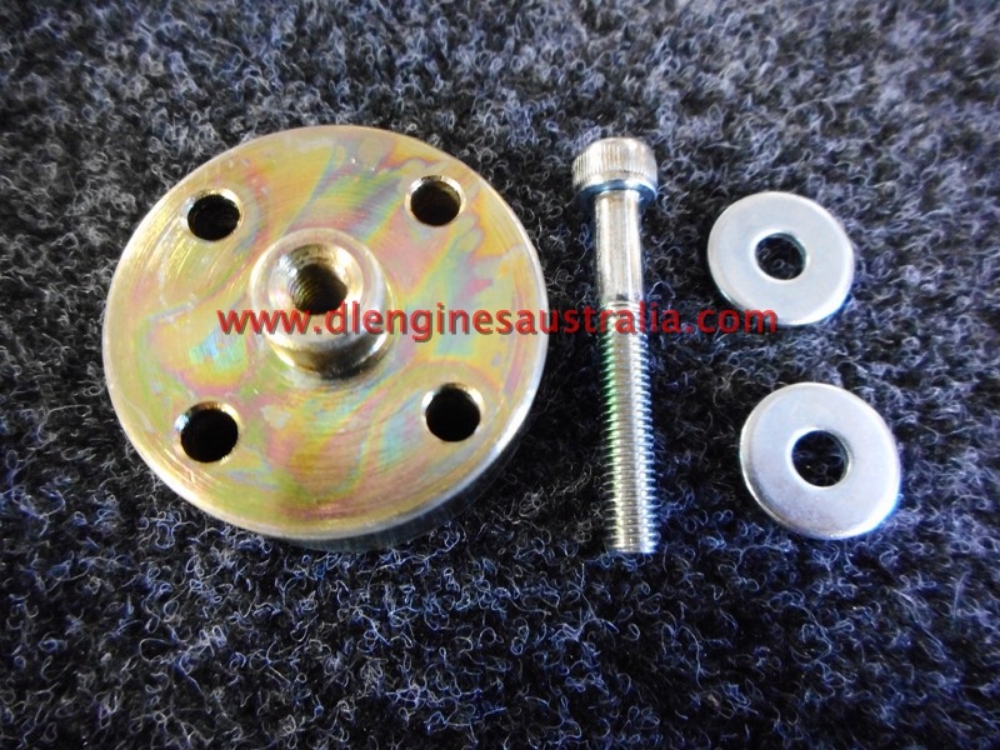

DLE20 DLE20RA DLE30 DLE35RA DLE40 Prop Drill Guide Jig

DLE20 DLE 20RA DLE30/DLE35RA/DLE40 Propeller & Spinner drilling Guide.

CNC manufactured from Hardened Steel.

The Best design, ensures straight accurate drilling of prop and spinner back plates.

Use with good quality ~ 4.2mm drill bit

*Note* it is best to drill props from the back face. Back out drill several times as you go to clear wood from the bit to ensure a smooth, accurate hole. Do not force the bit through the prop. Place bolt in first hole after drilling to help with alignment when drilling other holes.
