AR 8477 Soft Start High Torque

SKU: BRC1350

$164.99 (USD) incl tax

High Torque Titanium Geared Servo 70kg designed for the high demands of 3D, precision flying, giant scale and turbine RC hobby.

Availability: Out of Stock - on backorder and will be dispatched once in stock.

Qty:

+ -

Description

The all ne AR 8477 competition grade high voltage high torque servo takes it to the next level. Operating from 6.0volts, 7.2volts or 8.4volts, the AR-84 series builds on the success of the super reliable AR7444S servo offering a full metal case, dual bearing for excellent long life usage and gobs more torque and holding power.

Soft Start Function
Gone are the days of jerking controls surfaces when you power up your model. Each time your model powers up the AR8455 servo will elegantly move the control surface to the current signal position and then runs as normal.

Specs:

Torque(6.0V)	55.0 kg-cm / (763.8 oz/in)
Torque(7.4V)	60.0 kg-cm / (833.2 oz/in)
Torque(8.4V)	70.0 kg-cm / (972.1 oz/in)
Speed	0.19 sec (6.0V) │ 0.17 sec (7.4V) \| 0.16 sec (8.4)
Operating Voltage	6.0 ~ 8.4 DC Volts
Weight	80.0 g (2.26 oz)
Bearing Type	Ball Bearing x 2
Motor Type	Brushless Motor
Gear Type	Steel
Operating Temperature	-20℃~60℃
Working frequency	1520μs / 333hz

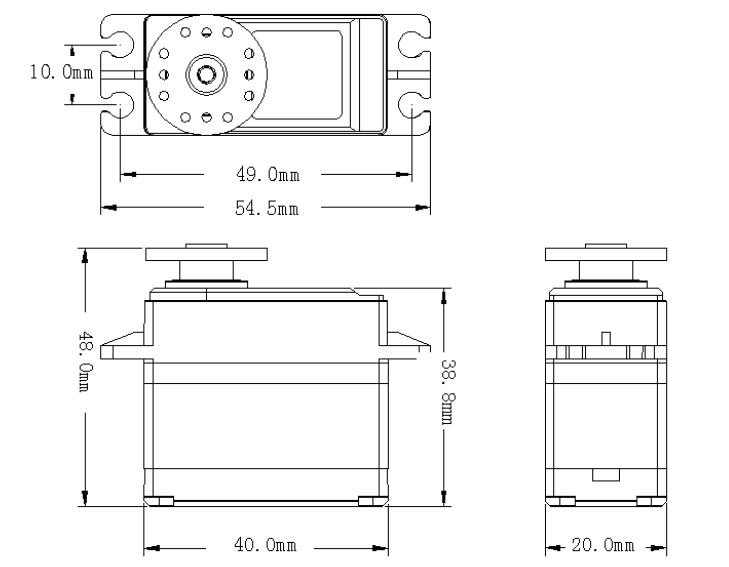

Size：40.3x 20.2 x 37.2 mm ( 1.58 x 0.80 x 1.46 in)	40.3x 20. x 38.7 mm ( 1.57 x 0.79 x 1.52 in)
