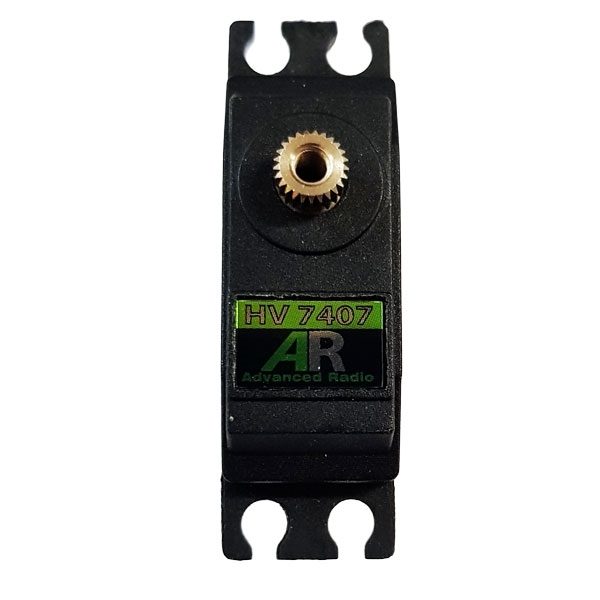

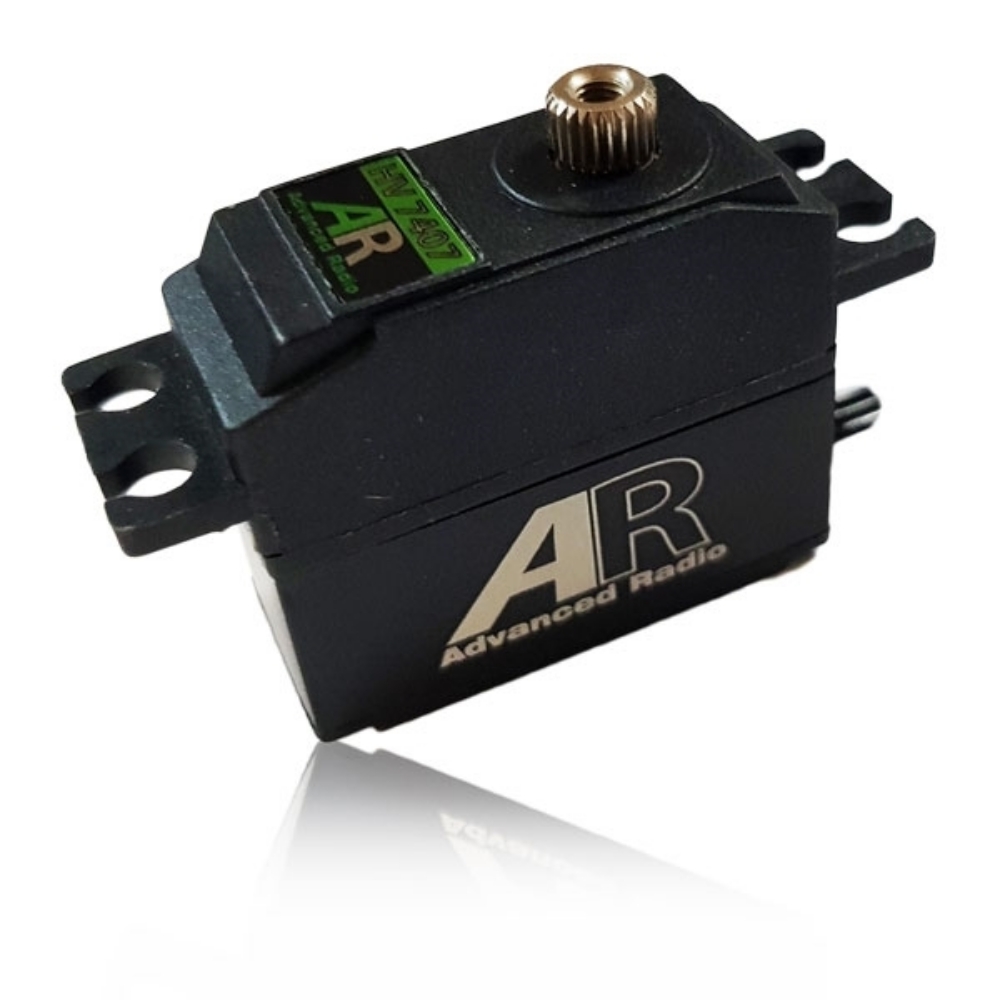

AR 7407 Titanium High Torque Coreless servo (Futaba servo arm compatible)

SKU: BRC796

$54.94 (USD) incl tax

High Torque Coreless Aluminium Geared Mid sized Servo 8.5kgs designed for the Smaller models, air valves and gear doors in the RC hobby.

Qty:

+ -

Description

The all ne AR 7407 is a high voltage mid sized servo takes it to the next level. Operating from 6.0volts, 7.2volts to 8.4volts, the AR-7407 are the latest in mid sized servo technology

Soft Start Function
Gone are the days of jerking controls surfaces when you power up your model. Each time your model powers up the AR7407 servo will elegantly move the control surface to the current signal position and then runs as normal.

Super Smooth Operation
With it's high quality titanium and all steel gear set, the AR7407 has a smooth as silk operation creating one of the smoothest and most accurate servos availble.

Extremly Precise Return To Centre
The AR7407 is a competition grade servo offering super precise return to center and precision position repeatability.

Delivering a massive 8.5kgs at 8.4V these servos have been designed for to deliver powerful torque in super small case.

Overload Protection

Another industry first. The AR-7407 comes with built in overload protection giving you peace of mind.

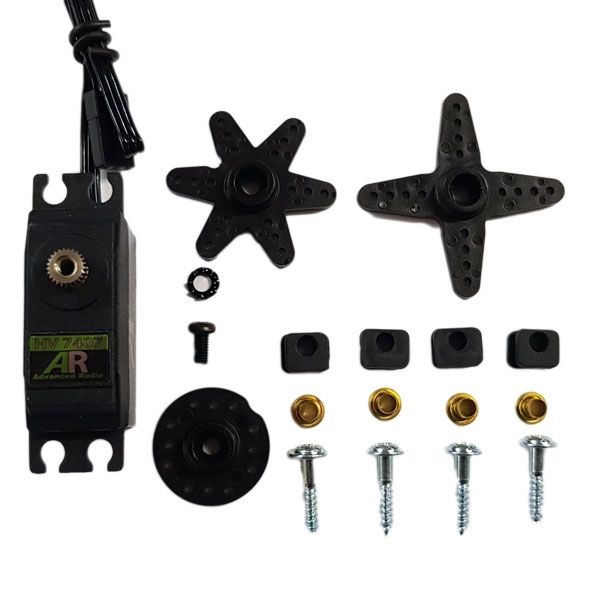

Supplied with super soft rubber vibration isolaters, brass eyeles, abs plastic servos arms and mounting screws.

Specs:

Torque(6.0V)	6.5 kg-cm (90.27 oz/in)
Torque(7.4V)	7.5 kg-cm (104.16 oz/in)
Torque(8.4V)	8.5 kg-cm (118.04 oz/in)
Speed	0.09 sec (6.0V) │ 0.08 sec (7.4V) \| 0.07 sec (8.4)
Operating Voltage	6.0 ~ 8.4 DC Volts
Weight	28.0 g
Bearing Type	Ball Bearing x 2
Motor Type	Coreless Motor
Gear Type	Copper & Aluminum
Operating Temperature	-20℃~60℃
Working frequency	1520μs / 333hz

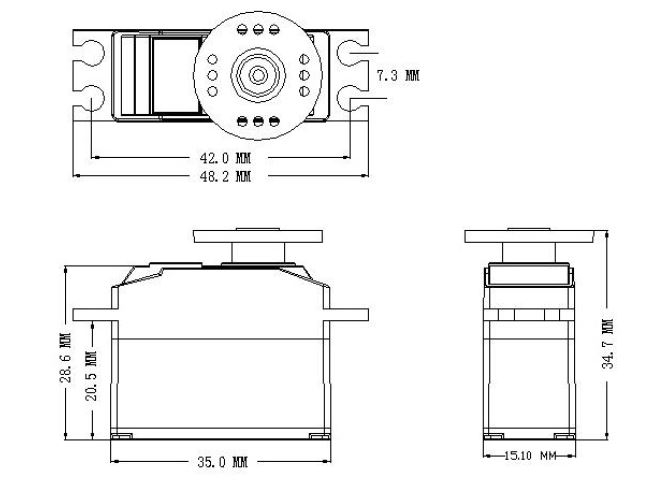

Size	35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)
