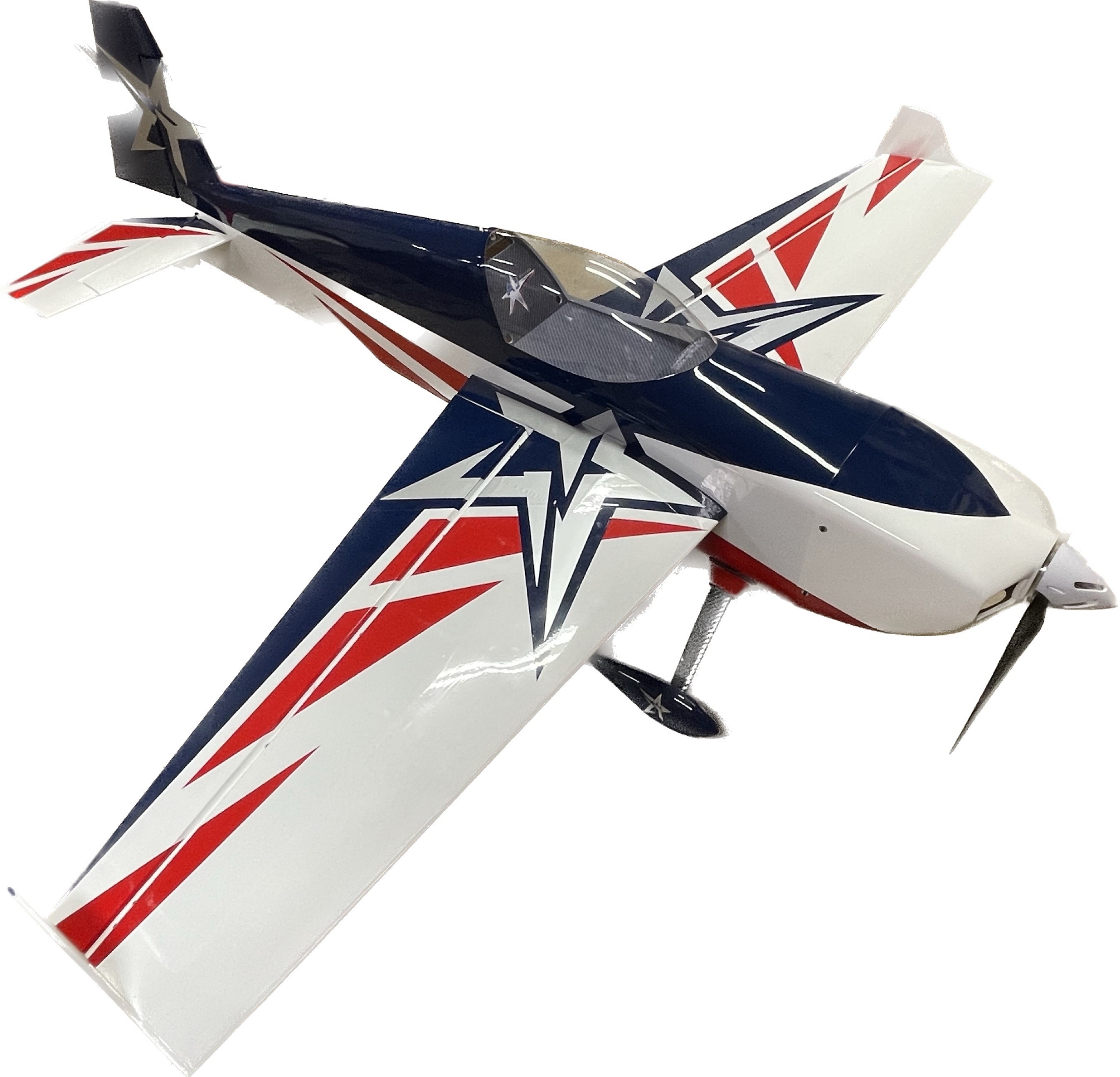

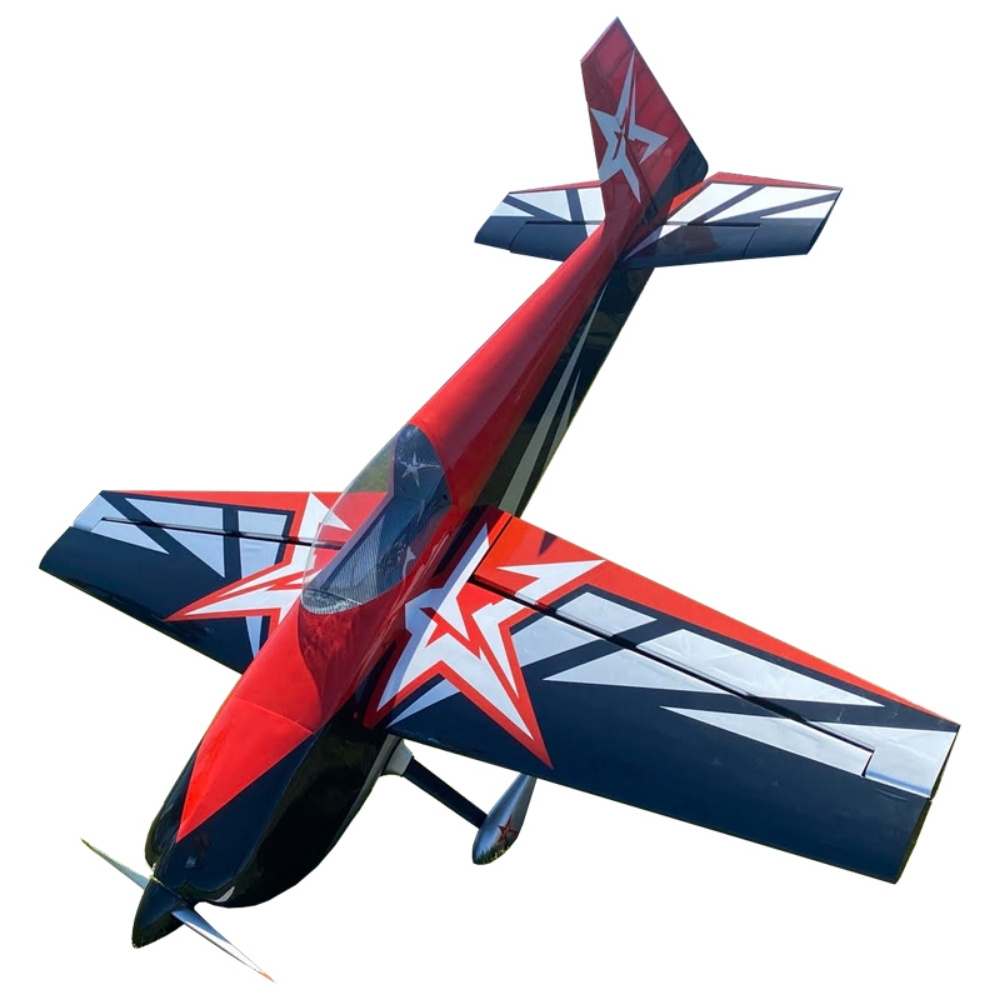

AJ Slick 540 74in (1.8m)

Manufacturer: AJ Aircraft
SKU: BRC1645
Be the first to review this product
$768.90 (USD) incl tax
AJ Slick is an amazing aircraft if you want one plane to do it all. A great 3D model designed with amazing agility and tracking as well as forgiving tendencies for the pilot who is getting into 3D or IMAC and wants to have one plane to progress on
*
+ -
Description

The 411:
  • Wing Span - 74"
  • Length - 68.5"
  • Height - 20"
  • Wing Area (1027 sq in)
  • AUW (dry) - 10.5 lbs.
  • Gas Power
    • Engine - 30cc - 40cc
    • Fuel Tank - 12oz - 14oz
    • Propeller - 20x8 / 20x9
  • Electric Power
    • Motor - 2400+ Watt 8S/12S
    • ESC - 100amp
    • LiPo - 8S 4400mAh / 12S 3300mAh
    • Propeller - 20x10
  • Radio - Recommended 5 channel with 4 high torque servos, 1 high speed throttle servo
  • IMAC Legal!
Recommended CG Range and Control Throws
  • The optimal center of gravity (CG) for the 74" Slick is located 1" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  • Carbon-Kevlar plywood construction!
  • Carbon-Kevlar reinforced landing gear mount!
  • Carbon-Kevlar reinforced firewall!
  • Updated tail wheel!
  • Pre-hinged, glued and sealed aileron control surfaces
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Pre-hinged rudder and elevator
  • G10 fiberglass control horns
  • Ultralight foam wheels
  • Heavy duty steel axles
  • Quick install, durable fiberglass wheel pants
  • Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
  • Extra hardware bag with spare parts
  • Optional SFGs included
  • Removable rudder
  • Canister tunnel
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre drilled firewall
  • High quality ball links & turnbuckles for all control surfaces
  • Velcro for fuel tank or battery restraint
NOTE: This product is shipped in two separate boxes.
The main box measures 61"L x 21"W x 11"H (27 lbs. total), The cowl box measures 12"L x 11"W x 11"H (3 lbs. total).

Required Items:
  • 35cc class, engine of your choice: DLE35/DLE40/GP38
  • Boss 20x10 or Boss Carbon 20x10
  • 9 servos of your choice (recommend 8433s)
  • Boss Fuel Tank 16oz (500ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot or AR Fuel Dot
  • Servo Extensions
    • (2) x 6" proline extensions for the ailerons
    • (1) x 12" proline extension for the ESC to Receiver (if electric)
    • (1) x 12" proline extensions for the throttle servo (if gas)
    • (1) x 24" proline extension for elevators
    •
  • Aluminum Servo Arms
    • (3) x 1.50" servo arms for elevators & ailerons
    • (1) x 2.5" double servo arm for pull/pull rudder
