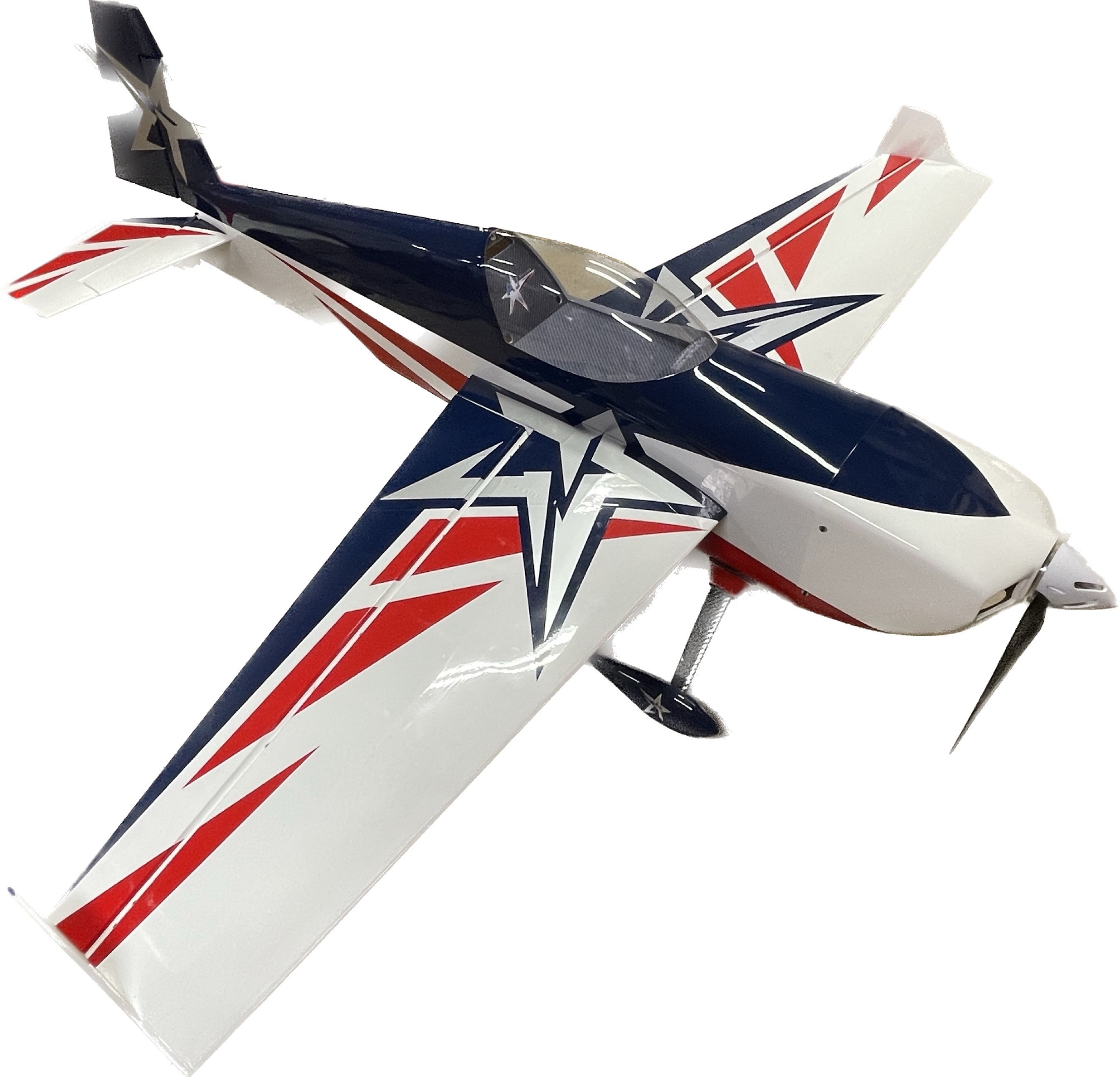

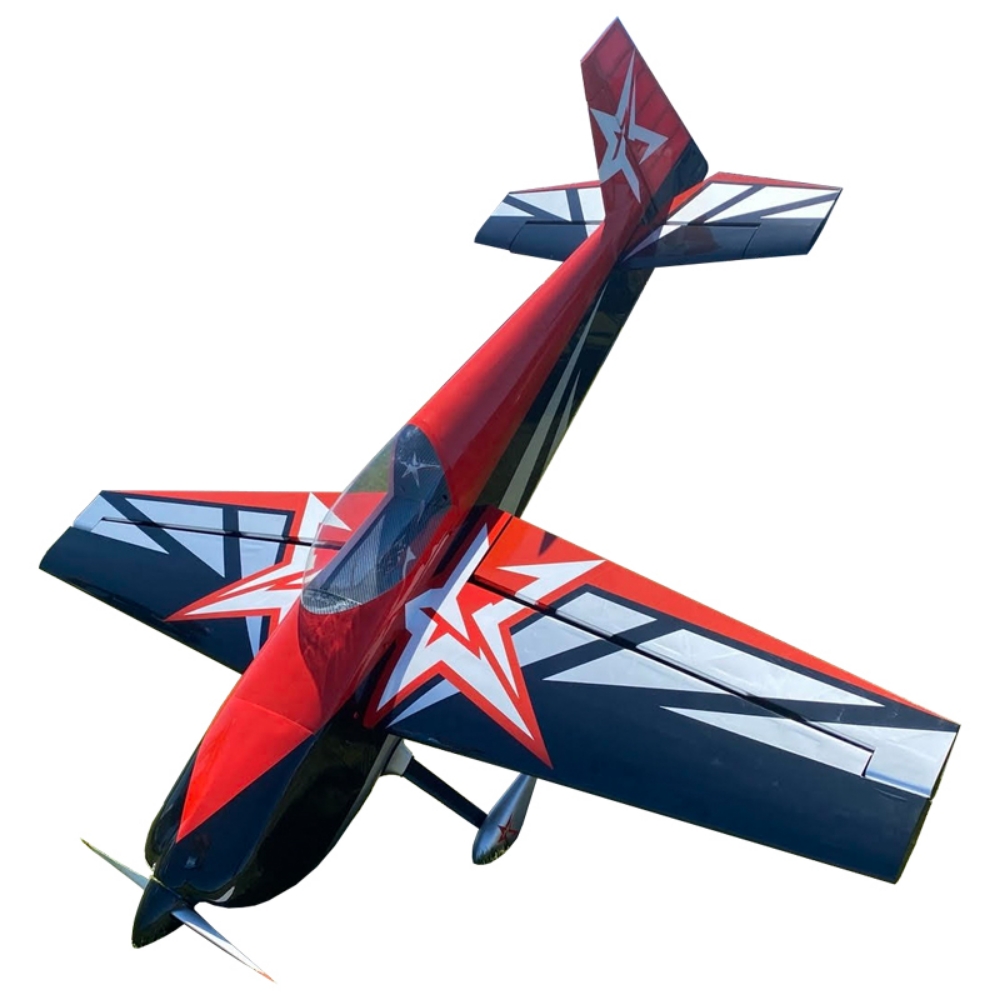

AJ Slick 540 51in (1.2m)

SKU: BRC1647

$317.90 (USD) incl tax

AJ Slick is an amazing aircraft if you want one plane to do it all. A great 3D model designed with amazing agility and tracking as well as forgiving tendencies for the pilot who is getting into 3D or IMAC and wants to have one plane to progress on

Colour Schemes *

Propeller Options

BOSS 15x8 High Performance Propeller [+$12.04 (USD)]
BOSS 15x6 High Performance Propeller [+$11.54 (USD)]

Added Servo Options

4 x AR 7407 Titanium High Torque Coreless servo [+$219.78 (USD)]

Added Proline Extensions

Make your own Cables - AR Aerospace wire 22awg - 10m [+$29.64 (USD)]
Make your own Cables - AR Servo terminal pack [+$7.64 (USD) per item]
Enter quantity:

Qty:

+ -

Description

The 411:

Wing Span - 51"
Length - 51"
Height - 14"
Wing Area - 540 sq.in.
AUW (dry) - 4-4.5lb
Electric Power - 850-1250 watt motor, 60 Amp ESC, 4S/5S/6S LiPo
Radio - 5 channel with 4 high torque mini servos

Recommended CG Range and Control Throws

The center of gravity (CG) range for the 51" AJ Slick 540 is located 1/2" in front of the wing tube. (+/- 1/2")
Aileron Control Throws

Low Rates - 15 deg. (30% Exp)
Mid Rates - 30 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)

Elevator Control Throws

Low Rates - 20 deg. (30% Exp)
Mid Rates - 30 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)

Rudder Control Throws

Low Rates - 15 deg. (30% Exp)
Mid Rates - 30 deg. (40% Exp)
High Rates - Max Throw (50% Exp)

What's in the box:

Carbon-Kevlar plywood construction!
Carbon-Kevlar reinforced landing gear mount!
Carbon-Kevlar reinforced firewall!
Carbon fiber main landing gear
Carbon fiber tail gear
Carbon fiber main wing tube
Pre-hinged control surfaces ready to be glued
G10 fiberglass control horns
Ultralight foam wheels
Heavy duty steel axles
Quick install, pre-drilled wheel pants
Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
High quality ball links & pushrods for all control surfaces
Extra hardware bag for spares
Velcro for battery restraint
Optional SFGs included

NOTE: This product is shipped in a single box measuring 45"L x 16"W x 8"H (13 lbs. total).

Required Items:

Also needed to complete:
- (2) x 6" aileron extensions
- (1) x 12" ESC extension
- (1) x 18" elevator extension
- 2" or 50mm vented spinner
- Castle Talon 60 ESC
- Boss 15x6
- 4 mini servos of your choice
- Powered by AJ Motor, see above
- Battery of your choice
