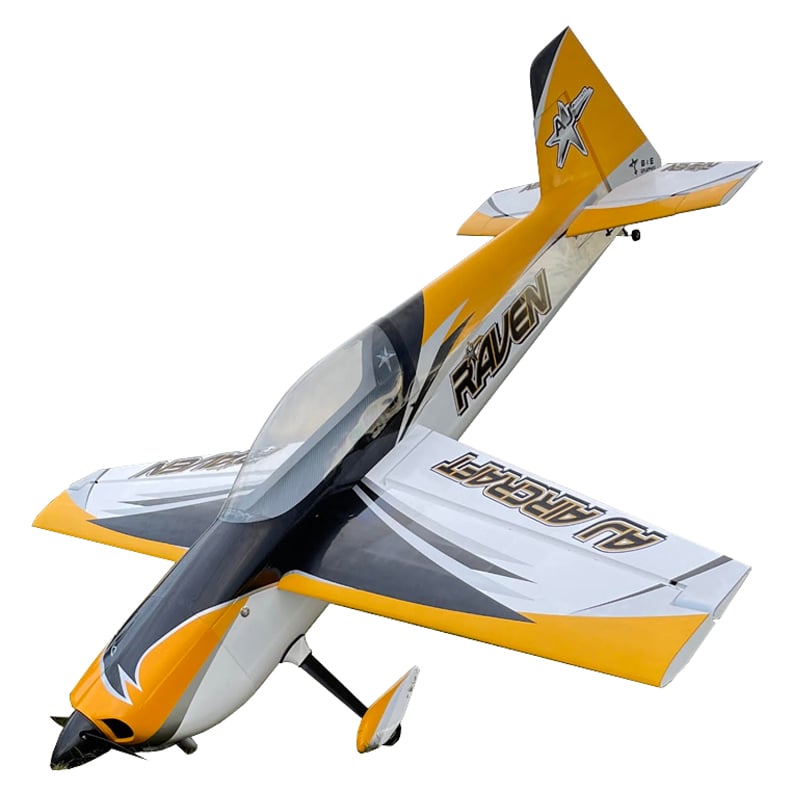

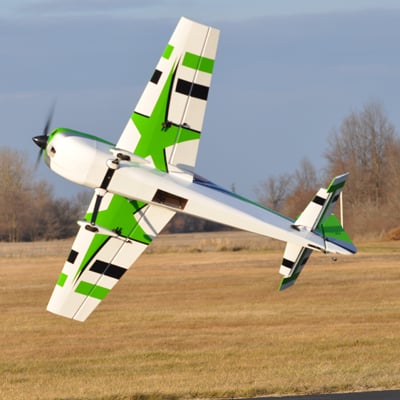

AJ Raven 92in (2.4m)

Manufacturer: AJ Aircraft
SKU: BRC1646
Be the first to review this product
$1,131.90 (USD) incl tax
AR Raven Draws the Line between IMAC flying and XA style with its single and double taper wing options the AJ Lazer is a perfect all rounder for 3D and IMAC flying
*
+ -
Description

The 411:
  • Wing Span - 92"
  • Length - 86"
  • Height - 23"
  • Wing Area -
  • AUW (dry) - 18lbs to 19lbs
  • Gas Power - 61cc -76cc
  • Electric Power - Hacker Q-80 or equivalent
  • Radio - 6 channel with 5 high torque servos (400 oz./in minimum) & 1 throttle servo for gas power
  • IMAC Legal
Recommended CG Range and Control Throws
  • The center of gravity (CG) range for the 92" Raven is located 2 1/4" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (50% Exp)
    • High Rates - 45 deg. (60% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  • Pre-hinged & glued ailerons & elevators
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Carbon fiber laminated wing and stab roots
  • Removable horizontal stabs & rudder
  • G10 fiberglass control horns
  • New! high temp quick release canopy
  • New! quick release wings
  • New! enlarged rudder size
  • Aluminum reinforced landing gear mount
  • Aluminum reinforced firewall
  • Aluminum standoffs for gas engines
  •  Enclosed canister tunnel
  • Heavy duty 3.5" foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Heavy duty pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre -drilled firewall
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint

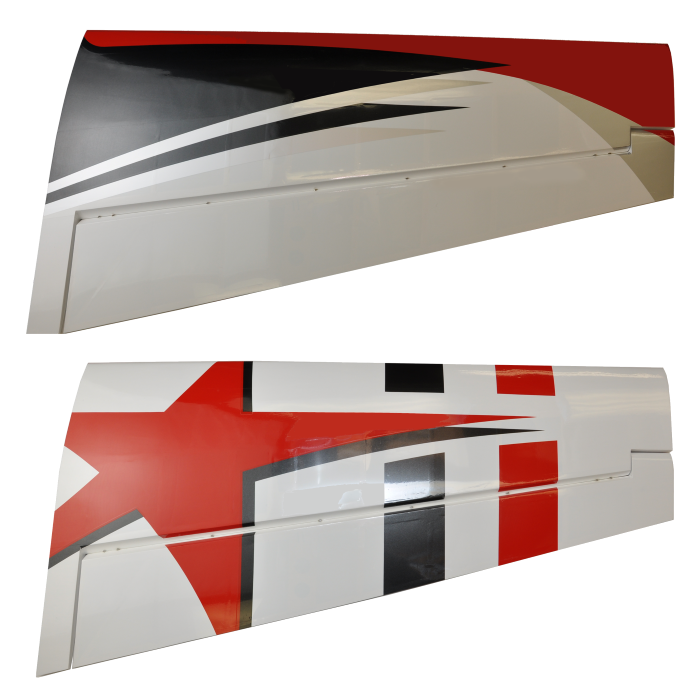

  • All airframe components covered in two color schemes:

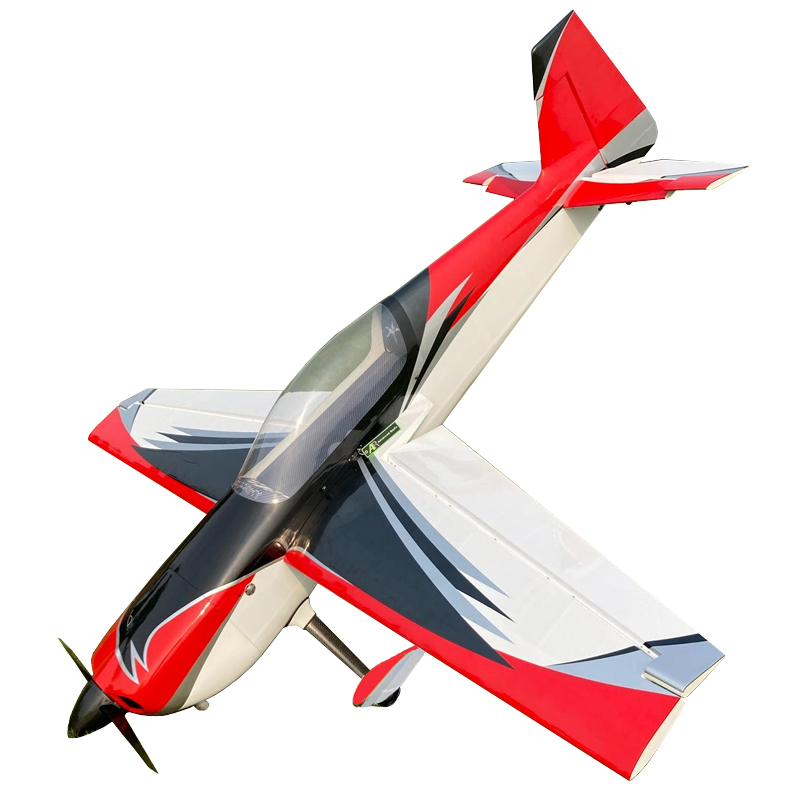

    • (True Red HANU866, White HANU870, Silver HANU881, Charcoal Pearl HANU846)

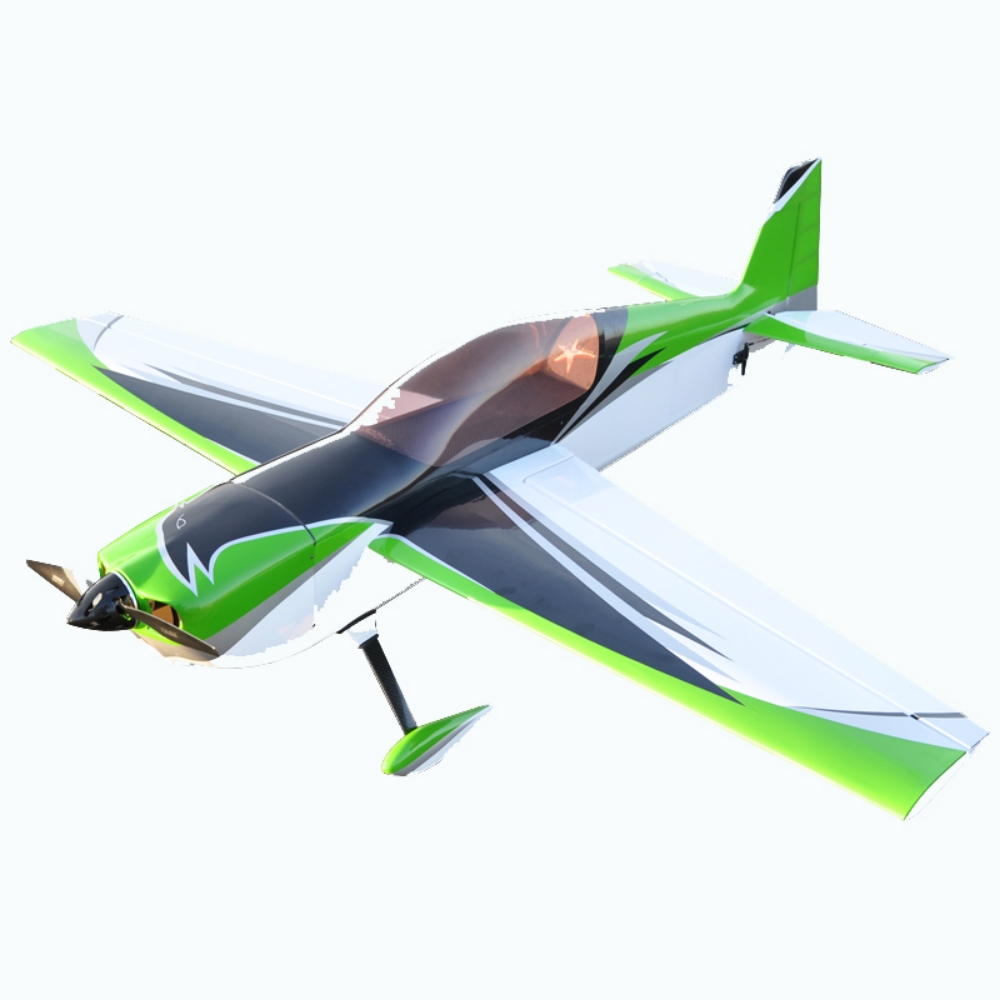

    • (Apple Green HANU903, White HANU870, Silver HANU881, Charcoal Pearl HANU846)
NOTE: This product is shipped in two separate boxes.
Required Items:
  • 70cc class, engine of your choice: DLE 65/GP76
  • Boss 24x10 or Boss 24x8
  • 5 servos of your choice (recommend 8433s)
  • Boss Fuel Tank 25oz (750ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot or AR Fuel Dot
  • Servo Extensions
    • (2) x 6" proline extensions for the ailerons
    • (2) x 6" proline extensions from the receiver to the aileron servos
    • (2) x 48" proline extensions for the elevators
    • (1) x 48" proline extension for the rudder (push/pull setup)
    • (1) x 12" proline extension for the ESC to Receiver (if electric)
    • (2) x 12" proline extensions for the throttle servo and ignition (if gas)
  • Aluminum Servo Arms
    • (4) x 1.75" servo arms for elevators & ailerons
    • (1) x 3.5" double servo arm for pull/pull rudder
    • (1) x 1.75" servo arm for push/pull rudder
