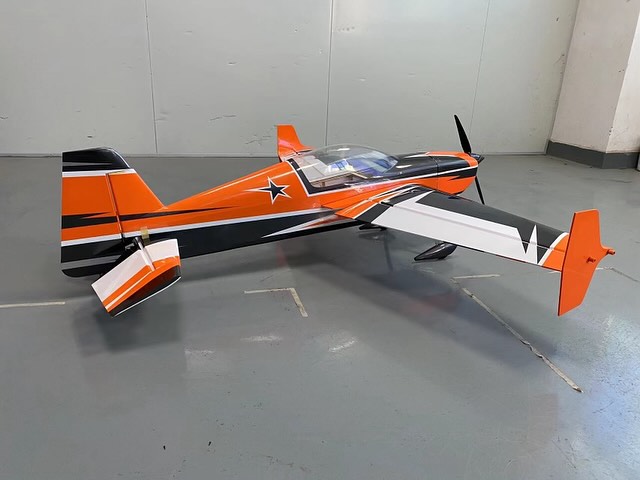

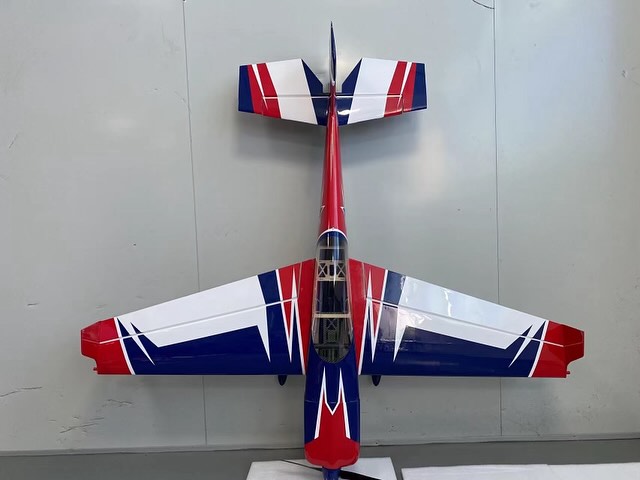

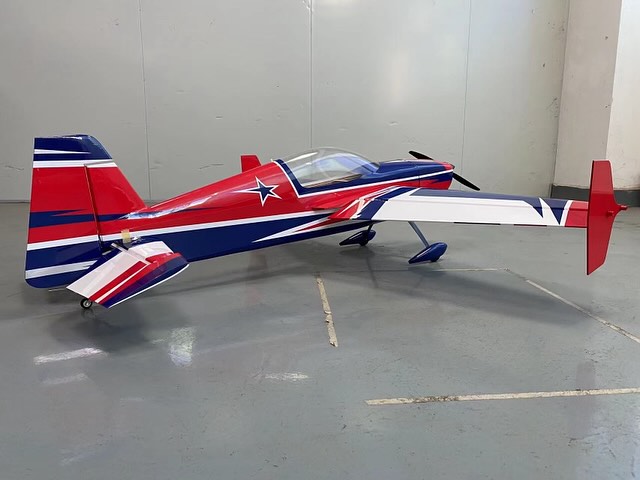

AJ Raven 61in

Manufacturer: AJ Aircraft

SKU: BRC1672

Be the first to review this product

$357.50 (USD) incl tax

AR Raven Draws the Line between IMAC flying and XA style with its single and double taper wing options the AJ Lazer is a perfect all rounder for 3D and IMAC flying

Colour Schemes *

Wing Design *

Added Servo Options

Added Throttle Servo 7407 [+$274.72 (USD)]

Adding Ignition Switch

AR IBEC Pro Ignition Kill Switch [+$54.99 (USD)]
IBEC Telemetry Ignition Switch [+$93.49 (USD)]

Qty:

+ -

Description

The 411:

Wing Span - 106"
Length - 100"
Height - 27"
Wing Area - SLE 2,095 sq-in, DT 2104 sq-in
AUW (dry) - 27-28 lbs.
Gas Power - 120cc
Radio - 9 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
IMAC Legal!

Recommended CG Range and Control Throws

The center of gravity (CG) range for the 106" Raven is located 1-1/2" in front of the wing tube (+/- 1/2")
Aileron Control Throws

Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)

Elevator Control Throws

Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - 45 deg. (50% Exp)

Rudder Control Throws

Low Rates - 15 deg. (30% Exp)
Mid Rates - 35 deg. (40% Exp)
High Rates - Max Throw (50% Exp)

What's in the box:

Carbon-Kevlar plywood construction!
Carbon-Kevlar reinforced landing gear mount!
Carbon-Kevlar reinforced firewall!
Durable, lightweight one piece cowl design!
Quick release Canopy, complete with finished cockpit!
Quick release wings and stabs!
Single piece fiberglass cowl!
Update tail wheel!
Pre-hinged, glued and sealed ailerons & elevators
Carbon fiber main landing gear
Carbon fiber main wing tube
Dual carbon fiber stab tubes
Removable rudder
G10 fiberglass control horns
Aluminum standoffs for gas engines
Enclosed canister tunnel
Heavy duty 4" foam wheels with aluminum hubs
Heavy duty collarless axles
Heavy duty pre-drilled wheel pants
Pre-drilled & rubber lined landing gear cuffs
Pre drilled firewall
Pre-run rudder pull-pull wires
High quality ball links & turnbuckles for all connections
Extra hardware bag for spares
Velcro for fuel tank or battery restraint
All airframe components covered in: (Apple Green HANU903, White HANU870, Charcoal Pearl HANU846, Silver HANU881, True Red HANU866, Cub Yellow HANU884)

NOTE: This product is shipped in three separate boxes.

Required Items:

120cc class, engine of your choice: DLE 120/130 /GP123
Boss 28x10 or Falcon 27x11
9 servos of your choice
Boss Fuel Tank 34 oz (1000ML)
AR IBEC Pro or T-IBEC
5" Falcon Carbon Spinner
AJ Aircraft fuel dot
Servo Extensions

(4) x 6" extensions for receiver to ailerons
(2) x 6" extensions for inner aileron
(2) x 24" extensions for outer ailerons
(1) x 24" extension for throttle servo
(1) x 24" extension for ignition kill
(2) x 36" extensions for push-pull rudder (only needed for push/pull setup)
(2) x 60" extensions for elevators

Aluminum Servo Arms

(4) x 1.75" single arms for ailerons
(2) x 1.75" single arms for elevators
(2) x 1.75" single arms for rudder (only needed for push/pull setup)
(1) x 3.50" double arm for rudder
