AJ Raven 73in (1.8m)

Manufacturer: AJ Aircraft
SKU: BRC1644
Be the first to review this product
$724.90 (USD) incl tax
AR Raven Draws the Line between IMAC flying and XA style with its single and double taper wing options the AJ Lazer is a perfect all rounder for 3D and IMAC flying
*
+ -
Description

The 411:
  • Wing Span - 73"
  • Length - 68.5"
  • Height - 20"
  • Wing Area

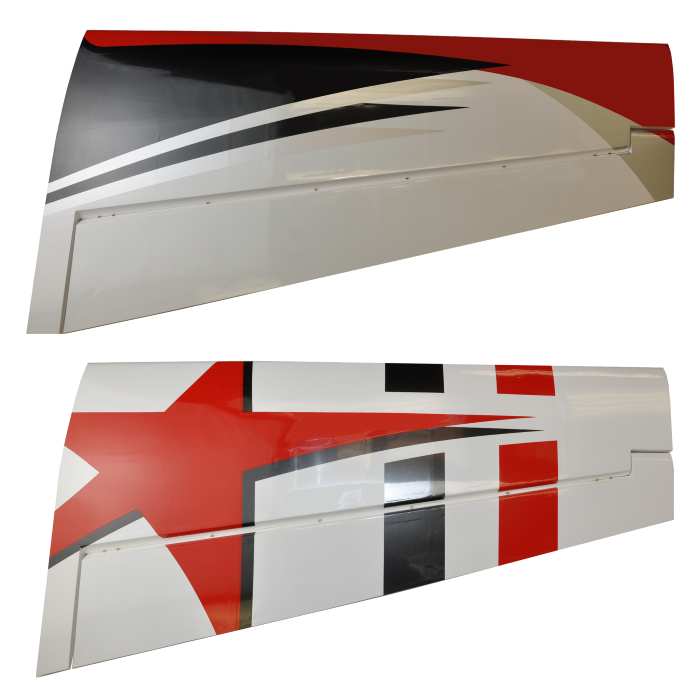

    • Double Taper Wing (1027 sq in)
    • Straight Leading Edge Wing (1019 sq in)
  • AUW (dry) - 10.5 lbs.
  • Gas Power
    • Engine - 30cc - 40cc
    • Fuel Tank - 12oz - 14oz
    • Propeller - 20x8 / 20x9
  • Electric Power
    • Motor - 2400+ Watt 8S/12S
    • ESC - 100amp
    • LiPo - 8S 4400mAh / 12S 3300mAh
    • Propeller - 20x10
  • Radio - Recommended 5 channel with 4 high torque servos, 1 high speed throttle servo
  • IMAC Legal!
Recommended CG Range and Control Throws
  • The optimal center of gravity (CG) for the 73" Raven is located 1" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  •  Carbon-Kevlar plywood construction!
  • Carbon-Kevlar reinforced landing gear mount!
  •  Carbon-Kevlar reinforced firewall!
  • Updated tail wheel!
  • Pre-hinged, glued and sealed aileron control surfaces
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Pre-hinged rudder and elevator
  • G10 fiberglass control horns
  • Ultralight foam wheels
  • Heavy duty steel axles
  • Quick install, durable fiberglass wheel pants
  • Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
  • Extra hardware bag with spare parts
  • Optional SFGs included
  • Removable rudder
  • Canister tunnel
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre drilled firewall
  • High quality ball links & turnbuckles for all control surfaces
  • Velcro for fuel tank or battery restraint
  • All airframe components covered in:

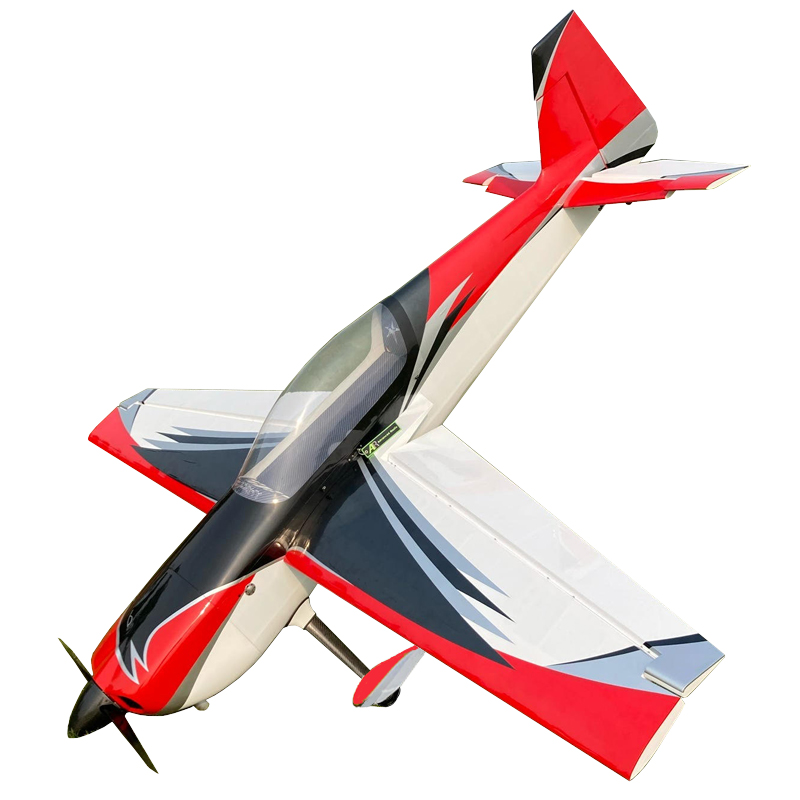

    • Red Scheme (True Red HANU866, White HANU870, Silver HANU881, Charcoal Pearl HANU846)

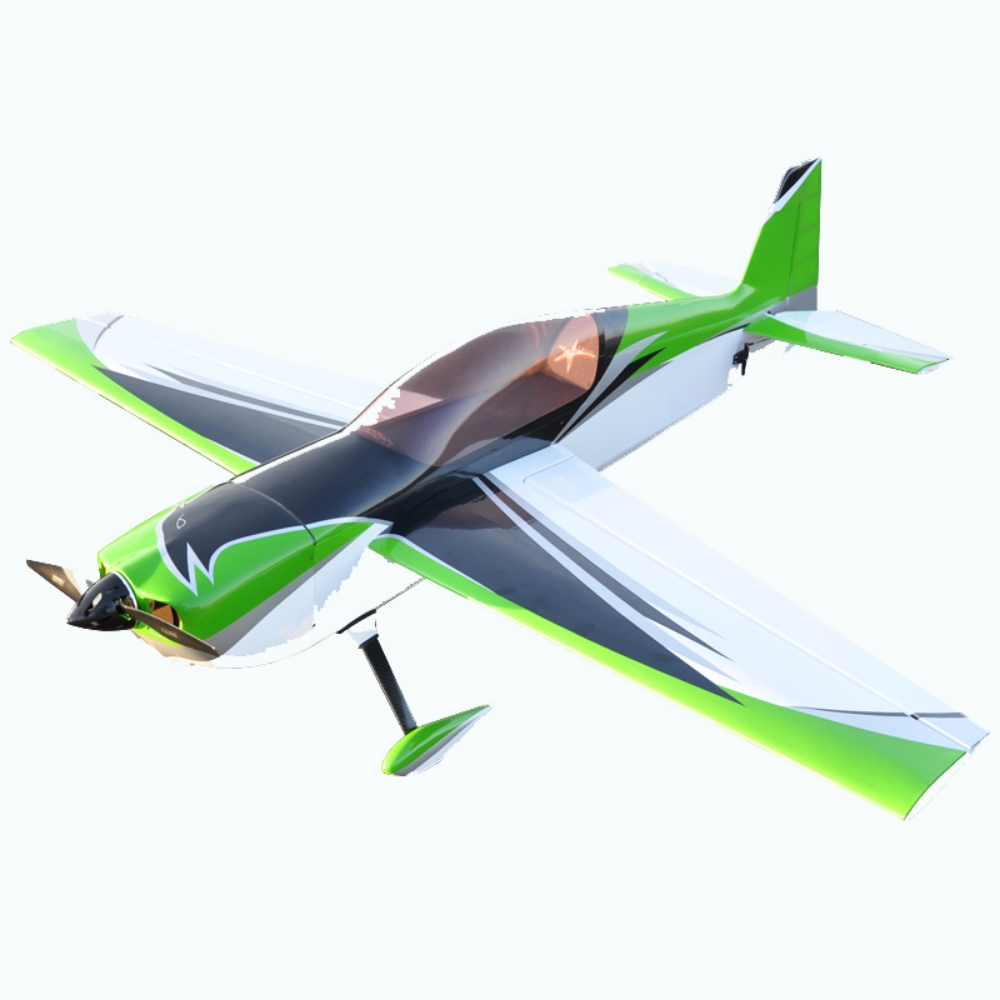

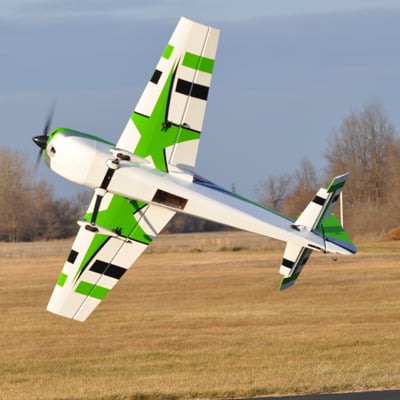

    • Green Scheme (Apple Green HANU903, White HANU870, Silver HANU881, Charcoal Pearl HANU846)
NOTE: This product is shipped in two separate boxes.
The main box measures 61"L x 21"W x 11"H (27 lbs. total), The cowl box measures 12"L x 11"W x 11"H (3 lbs. total).

Required Items:
  • 35cc class, engine of your choice: DLE35/DLE40/GP38
  • Boss 20x10 or Boss Carbon 20x10
  • 9 servos of your choice (recommend 8433s)
  • Boss Fuel Tank 16oz (500ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot or AR Fuel Dot
  • Servo Extensions
    • (2) x 6" proline extensions for the ailerons
    • (1) x 12" proline extension for the ESC to Receiver (if electric)
    • (1) x 12" proline extensions for the throttle servo (if gas)
    • (1) x 24" proline extension for elevators
    •
  • Aluminum Servo Arms
    • (3) x 1.50" servo arms for elevators & ailerons
    • (1) x 2.5" double servo arm for pull/pull rudder
