AJ Lazer 230Z 93in (2.4m)

Manufacturer: AJ Aircraft
SKU: BRC1640
Be the first to review this product
$1,098.90 (USD) incl tax
AJ Lazer was designed for the point and shoot pilots. With a focus on precision and IMAC the Lazer is a perfect platform for any Buddy IMAC Pilots
*
+ -
Description

The 411:
  • Wing Span - 93"
  • Length - 88"
  • AUW (dry) - 18lbs to 20lbs
  • Gas Power - 60cc-70cc
  • Electric Power 70cc Motor of choice
  • Radio - 6 channel with 5 high torque servos (400 oz./in minimum) & 1 throttle servo for gas power
  • IMAC Legal!
Recommended CG Range and Control Throws
  • The center of gravity (CG) range for the 93" Laser 230z is located 1" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (50% Exp)
    • High Rates - 45 deg. (60% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  • Pre-hinged, glued and sealed ailerons & elevators
  • All Carbon Kevlar construction
  • Carbon Fiber main landing gear
  • Carbon Fiber main wing tube
  • Quick release Wings, Elevators, and canopy
  • Removable Rudder
  • NEW! Heavy duty machined tail wheel
  • G10 fiberglass control horns
  • Aluminum reinforced landing gear mounts
  • Aluminum reinforced firewall
  • Aluminum standoffs sized for DA70 & GP76
  • Canister Tunnel
  • Heavy duty foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Thick, heavy duty, pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre-drilled firewall
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint
  • Airplanes available in following colors:

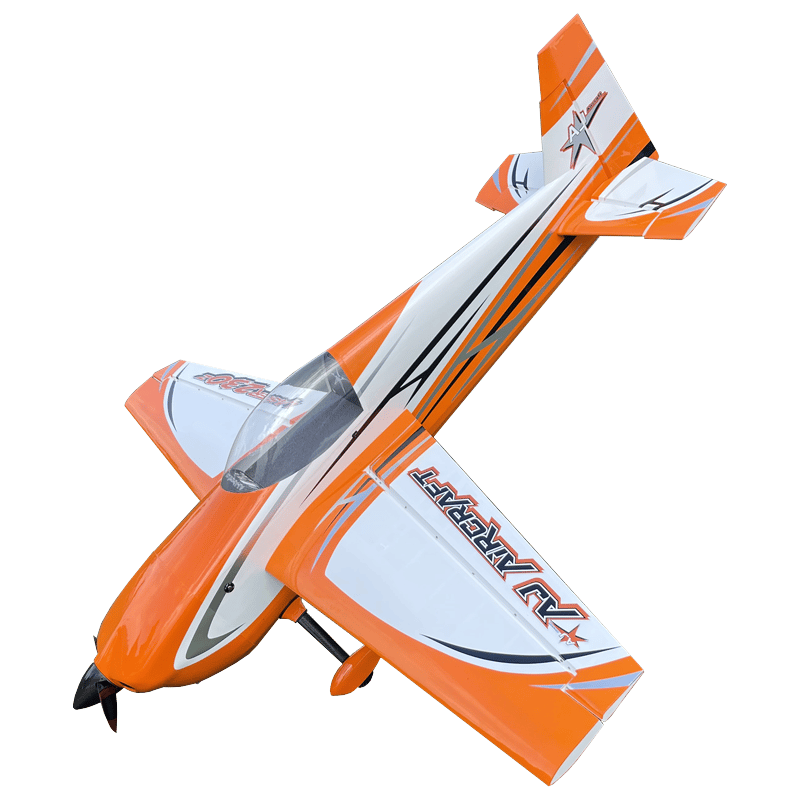

  • Orange & White Scheme

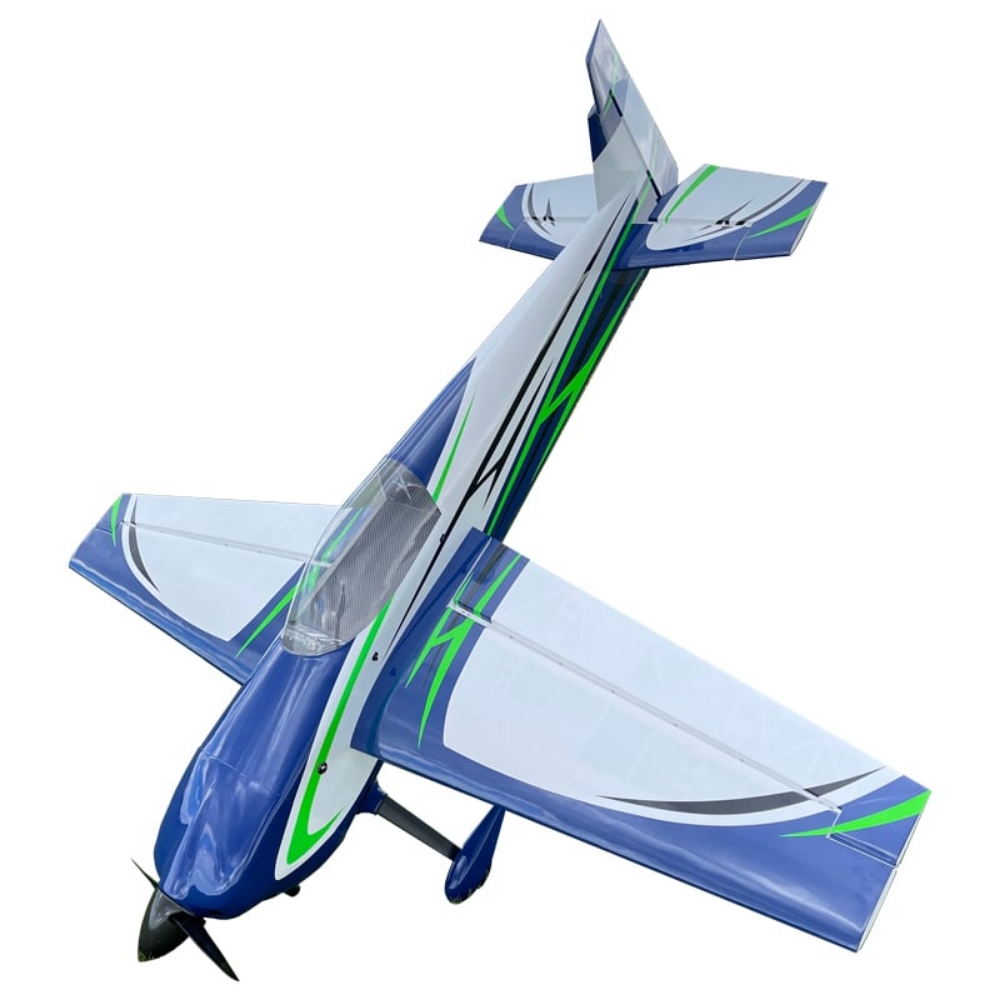

  • Dark Blue & White Scheme
NOTE: This product is shipped in three separate boxes.
The main box measures 89"L x 18"W x 22"H (49 lbs. total), The wing box measures 47"L x 29"W x 9"H (18 lbs. total).
Required Items:
  • 70cc class, engine of your choice: DLE 65/GP76
  • Boss 24x10 or Boss 24x8
  • 9 servos of your choice (recommend 8433s)
  • Boss Fuel Tank 25oz (750ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot or AR Fuel Dot
  • Servo Extensions
    • (2) x AR One Click servo connector
    • (2) x 6" proline extensions for the ailerons
    • (2) x 6" proline extensions from the receiver to the aileron servos
    • (2) x 48" proline extensions for the elevators
    • (1) x 48" proline extension for the rudder (push/pull setup)
    • (1) x 12" proline extension for the ESC to Receiver (if electric)
    • (2) x 12" proline extensions for the throttle servo and ignition (if gas)
  • Aluminum Servo Arms
    • (4) x 1.75" servo arms for elevators & ailerons
    • (1) x 3.5" double servo arm for pull/pull rudder
    • (1) x 1.75" servo arm for push/pull rudder
