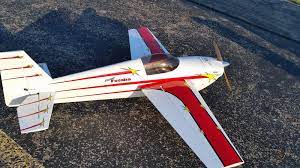

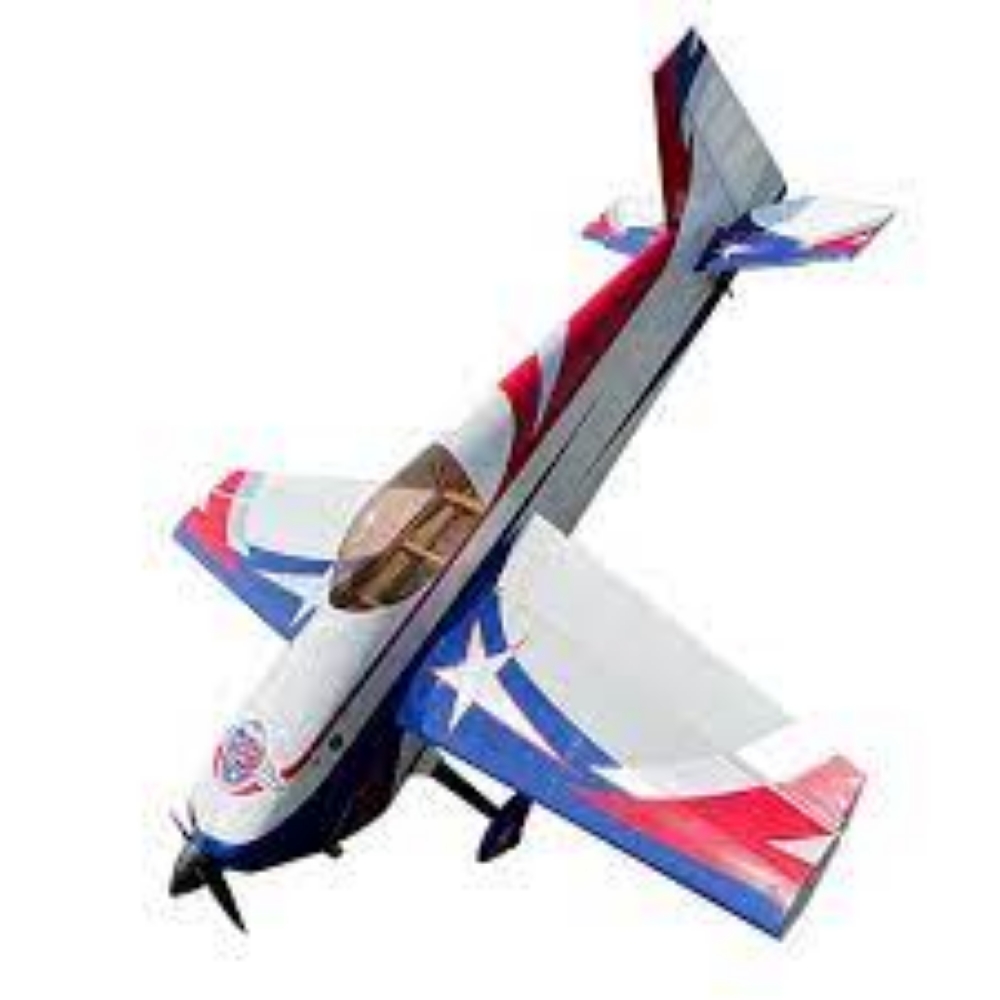

AJ Lazer 230Z 73in (1.8m)

Manufacturer: AJ Aircraft
SKU: BRC1643
Be the first to review this product
$691.90 (USD) incl tax
AR Lazer was designed for the point and shoot pilots. With a focus on precision and IMAC the Lazer is a perfect platform for any Buddy IMAC Pilots
*
+ -
Description

The 411:
  • Wing Span - 73"
  • Length - 70"
  • Height -
  • Wing Area -
  • AUW (dry) - 10-11 lb
  • Gas Power
    • Engine - 30cc - 40cc
    • Fuel Tank - 12oz - 14oz
    • Propeller - 20x8 / 20x9
  • Electric Power
    • Motor - 2400+ Watt 8S/12S
    • ESC - 100amp
    • LiPo - 8S 4400mAh / 12S 3300mAh
    • Propeller - 20x10
  • Radio - Recommended 5 channel with 4 high torque servos, 1 high speed throttle servo
Recommended CG Range and Control Throws
  • The optimal center of gravity (CG) for the 73" Laser 230z is located 1" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 30 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  • Pre-hinged, glued and sealed aileron control surfaces
  • Carbon fiber main landing gear
  • Carbon fiber tail gear
  • Carbon fiber main wing tube
  • Carbon fiber reinforced landing gear mount
  • Pre-hinged rudder and elevator
  • G10 fiberglass control horns
  • Ultralight foam wheels
  • Heavy duty steel axles
  • Quick install, durable fiberglass wheel pants
  • Pre-run rudder pull-pull wires (pushrod also included for push-pull option)
  • Extra hardware bag with spare parts
  • Optional SFGs included
  • Removable rudder
  • Canister muffler tunnel with mounts
  • Pre-drilled & rubber lined landing gear cuffs
  • Firewall drilling templates for common engines
  • High quality ball links & turnbuckles for all control surfaces
  • Velcro for fuel tank or battery restraint
  • Genuine Ultracote covering in 2 color scheme choices:
    • Reflex Scheme (Cub Yellow HANU884, Midnight Blue HANU885, Silver HANU881, White HANU870)
    • Valor Scheme (True Red HANU866,Midnight Blue HANU885, Silver HANU881, White HANU870)
NOTE: This product is shipped in two separate boxes.
The main box measures 61"L x 22"W x 12"H (28 lbs. total), The cowl box measures 13"L x 11"W x 11"H (3 lbs. total).

Required Items:
  • 70cc class, engine of your choice: DLE35/DLE40/GP38
  • Boss 20x10 or Boss Carbon 20x10
  • 9 servos of your choice (recommend 8433s)
  • Boss Fuel Tank 16oz (500ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot or AR Fuel Dot
  • Servo Extensions
    • (2) x 6" proline extensions for the ailerons
    • (1) x 12" proline extension for the ESC to Receiver (if electric)
    • (1) x 12" proline extensions for the throttle servo (if gas)
    • (1) x 24" proline extension for elevators
    •
  • Aluminum Servo Arms
    • (3) x 1.50" servo arms for elevators & ailerons
    • (1) x 2.5" double servo arm for pull/pull rudder
