AJ lazer 105 in (2.7m)

Manufacturer: AJ Aircraft
SKU: BRC1641
Be the first to review this product
$1,648.90 (USD) incl tax
AR lazer 230Z is the perfect IMAC machine, With a long Tail and large side area the Lazer 230 does not dissapoint in IMAC and 3D
*
+ -
Description

The 411:
  • Wing Span - 105"
  • Length - 102"
  • AUW (dry) - 26-28 lbs.
  • Gas Power - 100cc to 120cc
  • Radio - 9 channel with 8 high torque servos (400 oz./in minimum) & 1 throttle servo
  • IMAC Legal!
Recommended CG Range and Control Throws
  • The center of gravity (CG) range for the 105" Laser 230z is located 1/2" in front of the wing tube (+/- 1/2")
  • Aileron Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Elevator Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - 45 deg. (50% Exp)
  • Rudder Control Throws
    • Low Rates - 15 deg. (30% Exp)
    • Mid Rates - 35 deg. (40% Exp)
    • High Rates - Max Throw (50% Exp)
What's in the box:
  • Pre-hinged, glued and sealed ailerons & elevators
  • All Carbon Kevlar Construction
  • Carbon fiber main landing gear
  • Carbon fiber main wing tube
  • Dual carbon fiber stab tubes
  • Quick Release Wings, Stabs & Canopy
  • Removable Rudder
  • G10 fiberglass control horns
  • Aluminum reinforced landing gear mount
  • Aluminum reinforced firewall
  • Aluminum standoffs for gas engines
  • Canister tunnel
  • Canopy has finished foam cockpit.
  • Heavy duty foam wheels with aluminum hubs
  • Heavy duty steel axles
  • Premium HD tail wheel assembly
  • Heavy duty pre-drilled wheel pants
  • Pre-drilled & rubber lined landing gear cuffs
  • Pre-run rudder pull-pull wires (turnbuckle also included for push-pull option)
  • High quality ball links & turnbuckles for all connections
  • Extra hardware bag for spares
  • Velcro for fuel tank or battery restraint

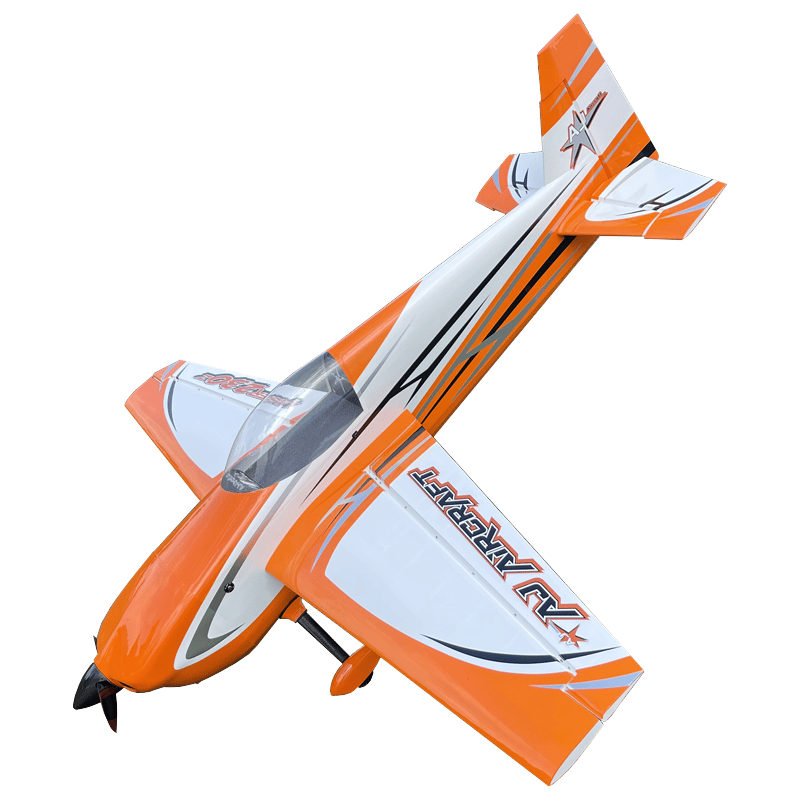

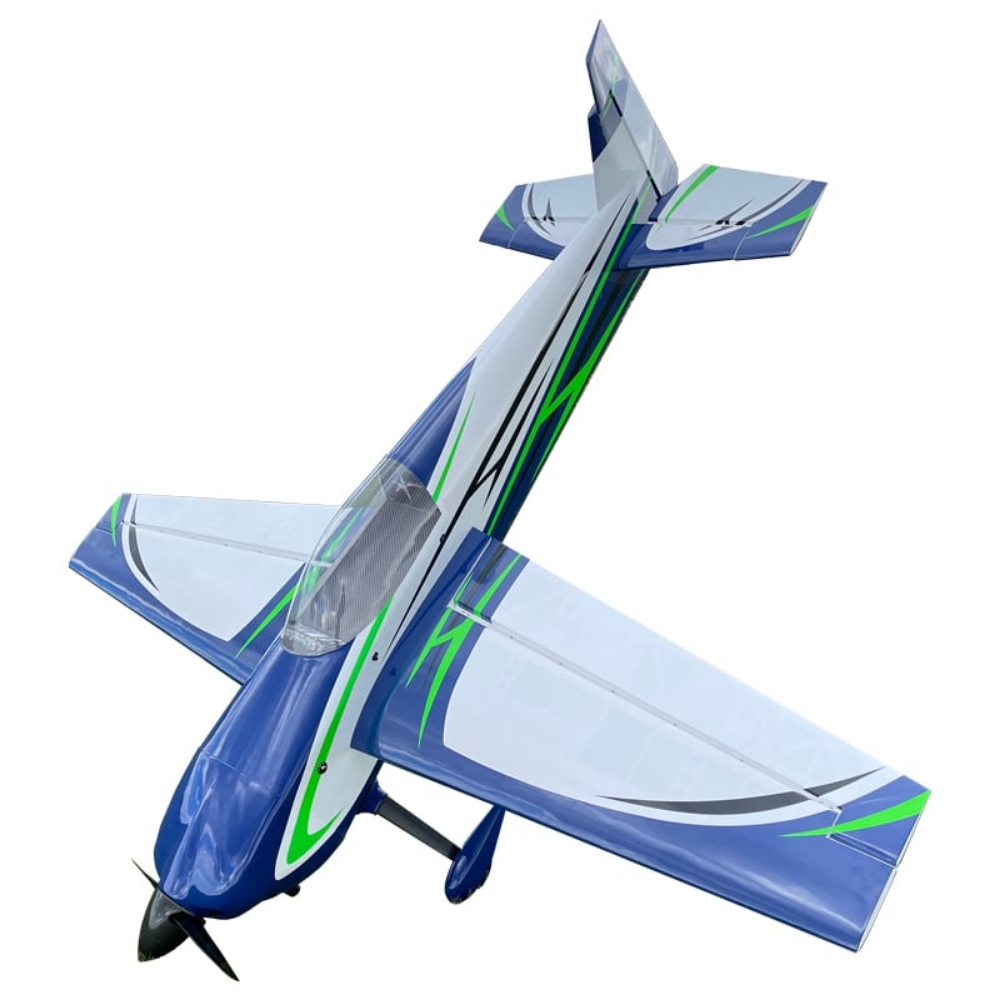

  • Airplanes available in the following color schemes
  • Orange & white
  • Dark Blue & White
NOTE: This product is shipped in two separate boxes.
The main box measures 97"L x 20"W x 22"H (59 lbs. total), The wing box measures 53"L x 30"W x 9"H (23 lbs. total).
Required Items:
  • 120cc class, engine of your choice: DLE 120/130 /GP123
  • Boss 28x10 or Falcon 27x11
  • 9 servos of your choice
  • Boss Fuel Tank 34 oz (1000ML)
  • AR IBEC Pro or T-IBEC
  • 5" Falcon Carbon Spinner
  • AJ Aircraft fuel dot
  • Servo Extensions
    • (4) x 6" extensions for receiver to ailerons
    • (2) x 6" extensions for inner aileron
    • (2) x 24" extensions for outer ailerons
    • (1) x 24" extension for throttle servo
    • (1) x 24" extension for ignition kill
    • (2) x 36" extensions for push-pull rudder (only needed for push/pull setup)
    • (2) x 60" extensions for elevators
  • Aluminum Servo Arms
    • (4) x 1.75" single arms for ailerons
    • (2) x 1.75" single arms for elevators
    • (2) x 1.75" single arms for rudder (only needed for push/pull setup)
    • (1) x 3.50" double arm for rudder
