Futaba 7103 3/18 channel Receiver

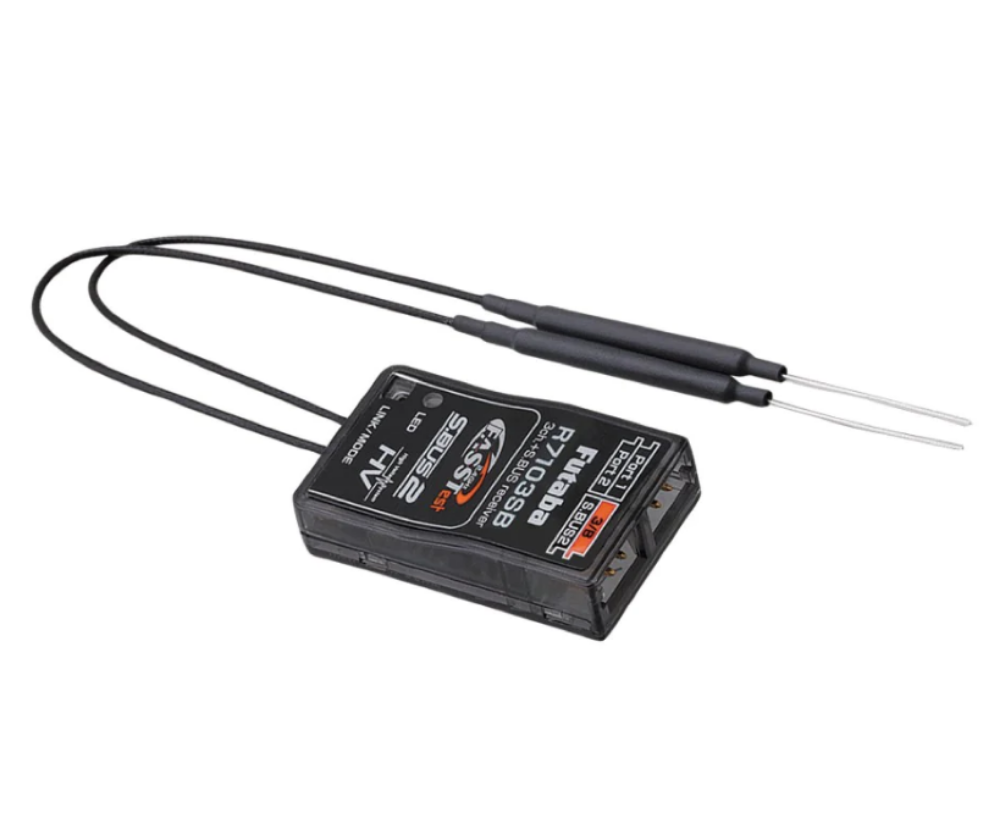

The Futaba R7103SB FASSTest 2.4GHz Bidirectional S.BUS2/S.BUS Port and Conventional System Receiver.

The R7103 is compatable with 16IZ, 32IZ, 18MZ, 18SZ,16SZ and 14SG transmitters. It features SBUS and SBUS2 and when used with the Smart Bus SRS system will provide up to 18 input channels with full SBU2 telemetry support for battery monitoring of voltage, current and mAH.

FEATURES: Compatible with Futaba FASSTest 2.4GHz transmitters

INCLUDES: Futaba R7103SB FASSTest 2.4GHz Receiver with EXT-VOL cable and Instructions

SPECS: Dimensions: 0.89 x 1.47 x 0.37" (22.5 x 37.4 x 9.3mm)

Weight: 0.25oz (7.2g)
Power Requirement: 3.7-7.4V (voltage range, 3.5-8.4V)
Extra Voltage Port: (port2) "EXT-VOL cable and CA-RVIN-700" as an
option is used: 0 - 70V DC
Antenna Length: 5-3/4"

COMMENTS: If this receiver is not used with an S.BUS2/S.BUS system, only three
channels are operational. If used with an S.BUS2/S.BUS system
the maximum number of channels of the transmitter can be used.
